10 kW, Water-Cooled Econoload RF Terminations

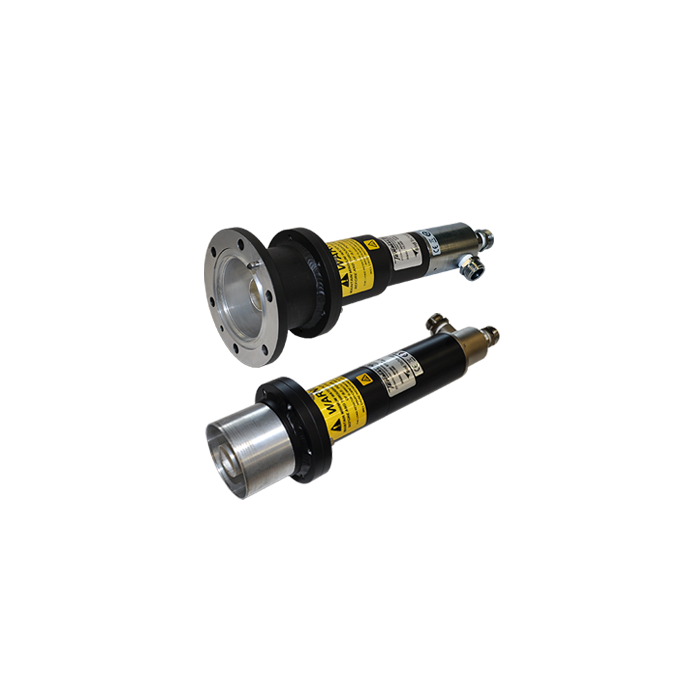

8730 Series, RF Loads are designed as compact, low VSWR and non-radiating terminations for high-power transmitter/transmission line systems. The units generate almost no ambient heat, making installation space minimal and convenient, in any position. The RF power is converted to heat in the hollow resistive film load resistor and directly absorbed by the water flowing through it.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
8730 Series Specifications
- Broadband water-cooled load for long-term RF dissipation when heat must be efficiently transferred away from the area
- Small size may be carried easily used in any position and installed anywhere there is a source of potable water
- Requires flow rate of 4 gallons (15.2 liters) per minute
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Black Powder Coat |
| VSWR and Frequency Range | See Model Matrix |
| Coolant | Distilled Water (< 1KHz), Distilled or Potable Water (>1KHz) |
| Operating Position | Any |
| Water Temperature Range | +5 to +60°C |
| Water Flow Rate | 4 gals./minute @ 5 °C to 6 gpm @ 60 °C, 15.2 liters/minute @ 5 °C to 22.8 lpm @ 60 °C |
| Cooling Type | Water-Cooled |
| Waterlines | 1/2" FPT or 3/4" hose |
| Input Flange Diameter | See Model Matrix |
| Connectors | See Model Matrix |
| Dimensions | 14-3/4" L x 2-3/4" Dia., 375 x 70 mm |
