4314C
4314C
Bird
450 kHz - 2.7 GHz, 100 mW - 10 kW, PEP RF Wattmeter

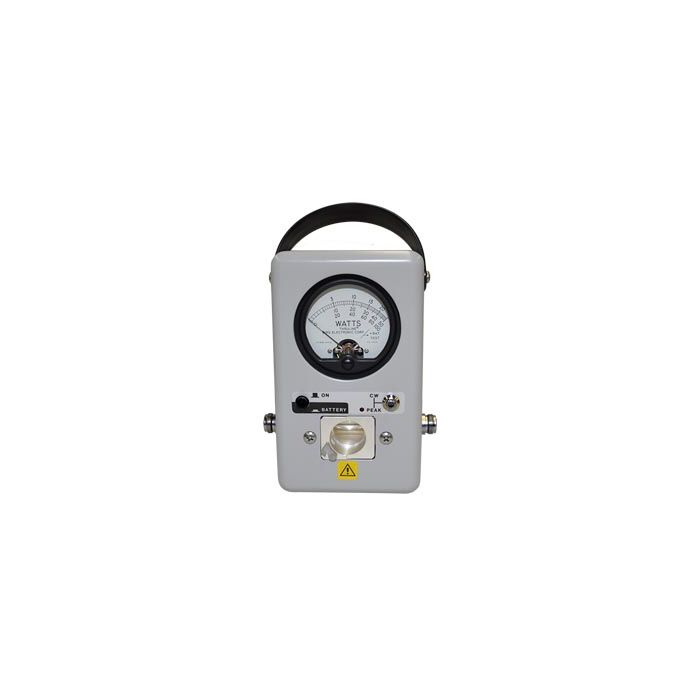

The 4314C, RF Wattmeter is similar to the model 43 Thruline Wattmeter but also contains electronic circuitry to accurately measure peak envelope power which is present in amplitude modulated signals such as AM broadcast, single sideband and TV video transmitters. The circuitry operates from 2 standard 9V alkaline batteries or an optional A.C. adaptor.
Features
Accurate CW and Peak Envelope (PEP) field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 kW
Uses industry standard Bird elements with space to store 2 additional within the meter housing
Rugged metal housing for the most demanding environments
Quick Change (QC) connectors to minimize the need for adapters when making critical measurements
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | PEP, Single Element, Wattmeter |
| Absolute Accuracy | ± 5% of full scale CW, ± 8% PEP |
| Dimensions | 6-7/8" x 5-1/8" x 3-5/8" (175 x 130 x 92 mm) |
| Housing surface finish | Light Gray Powder Coat |
| Frequency Range | 450 kHz to 2.7 GHz (depending on element) |
| Insertion VSWR | with N Connectors 1.05 max. to 1000 MHz |
| Power range | 100 mW to 10 kW using Bird® Plug-in Elements |
| Pulse | (min.) Pulse width 0.4 µs (100-2300 MHz) 1.5 µs (26-99 MHz) and 15 µs (2-25 MHz) repetition rate 30 pps and duty factor 1 x 104 min. |
| Connectors | QC Type (Female N normally supplied) |
| Battery | Two 9-Volt Alkaline Transistor Batteries |
| Power Supply | 120 VAC, 60 Hz or 220 VAC, 60 Hz (using Bird® adapter) |
