5017D-AV
5017D-AV
Bird

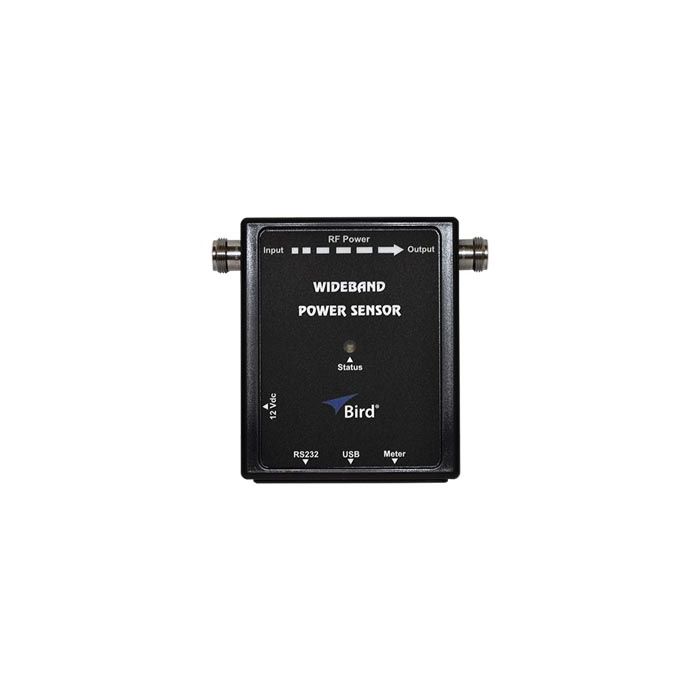

500mW - 500W Avg, 1300W Peak Wideband RF Power Sensor (Aviation)
500mW - 500W Avg, 1300W Peak Wideband RF Power Sensor (Aviation)
The 5017D-AV, 100 MHz - 1.3 GHz RF Power Sensor never requires field calibration, only requires calibration once per year and is traceable to National Institute of Standards and Technology (NIST). The WPS measures True Average Power, Peak Power, and Duty Cycle directly with exceptional accuracy and uses these precise measurements to calculate a wide range of other important factors, such as VSWR, Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power, and CCDF.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Certificates | Mechanical Shock & Vibration: IAQ MIL-PRF-28800F class 3 CE: EMC EN 61326-1-2006 |
| Impedance Ohm | 50.0000 |
| Directivity (dB) | 28 dB up to 100 MHz 30 dB from 100 to 1300 MHz |
| Frequency Range | 100 MHz to 1.3 GHz |
| Insertion Loss | <0.05 dB VSWR: <1.05 |
| Power range | 500 mW to 500 W average, 1300 W Peak |
| Connectors | Connector: N (F), Both |
| Data logging | Requires 5000-NG, VPM3 or Bird RF Meter App |
| Temperature Range | Operating: -10 °C to 50 °C (14 °F to 122 °F) Storage: -40 °C to 80 °C (-40 °F to 176 °F) |
| Power Supply | USB Port: Less than one low-power load DC Input Connector: 7 to 18 VDC at less than 0.1 A |
| Dimensions | 4.8 in x 4.6 in x 1.3 in (122 mm x 117 mm x 35.5 mm) |
| Interface | DPM: D89 proprietary interface PC Interface (1): RS-232, 9600 Baud, no parity, 8 data bits, 1 stop bit, D89 PC Interface (2): USB 2.0 Type B |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
