Keithley Instruments

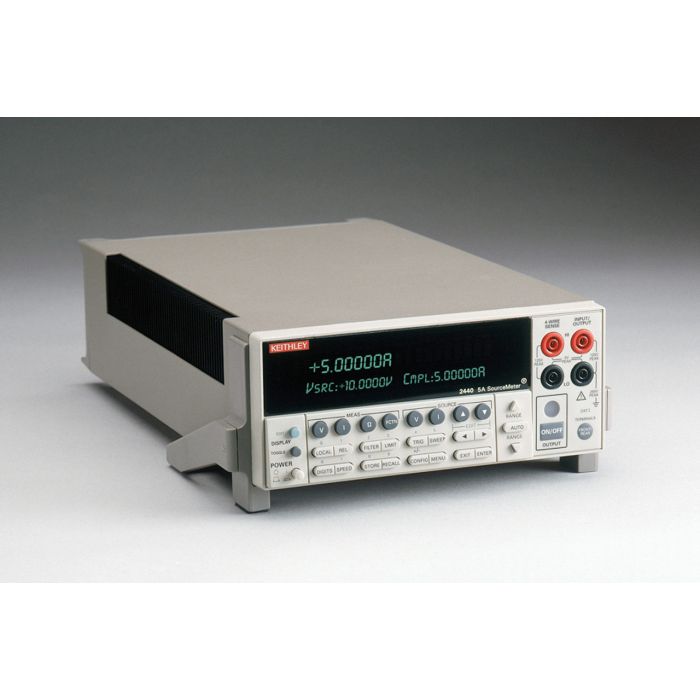

40 V, 5 A, 50 W SourceMeter SMU Instrument
Keithley’s Series 2400 Source Measure Unit (SMU) Instruments are designed specifically for test applications that demand tightly coupled sourcing and measurement. All SourceMeter models provide precision voltage and current sourcing as well as measurement capabilities.
Each SourceMeter SMU instrument is both a highly stable DC power source and a true instrument-grade 6½-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise.
The result is a compact, single-channel, DC parametric tester. In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for the communications, semiconductor, computer, automotive, and medical industries will find the SourceMeter SMU instruments invaluable for a wide range of characterisation and production test applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Discover Tektronix's factory service plans
Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.
| Attribute | Value |
|---|---|
| Manufacturer Product Family | Keithley 2400 Standard Series SMU |
| Key Features |
|
| Maximum Voltage | 40 V |
| Maximum Current | 5A |
| Measurement Resolution | 10pA / 100nV |
| Power | 50 W |
| Channels | 1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
