WPH1000
WPH1000
Wavecontrol

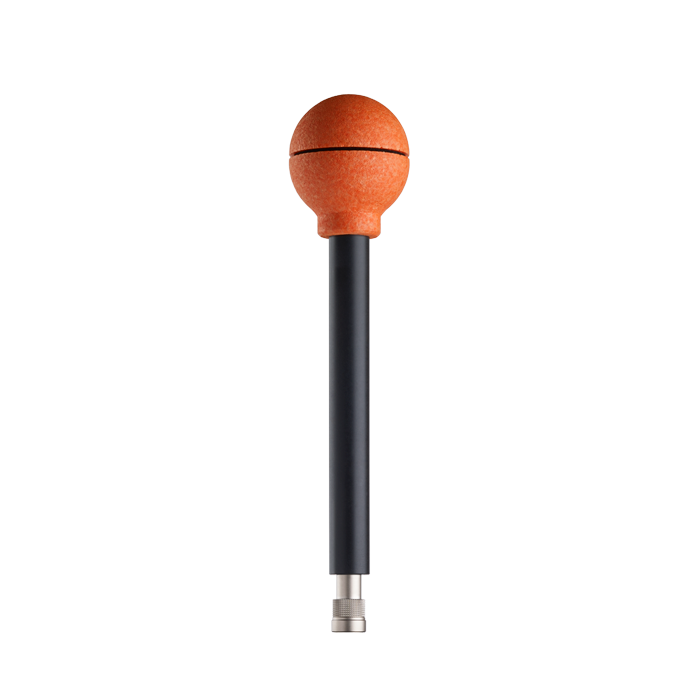

WPH1000 field probe 30 MHz to 1000 MHz
Capable of measuring H field from 30 MHz to 1000 MHz broadband the WPH1000 field probe is compatible with Wavecontrol’s SMP2, MonitEM and MonitEM-Lab equipment.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response |
± 0.5 dB (30 MHz -400 MHz) ± 1 dB (30 MHz - 1000 MHz) > -3 dB @ 25 MHz |
| Frequency Range | 30 MHz - 1000 MHz |
| Sensitivity | 0.018 A/m |
| Linearity | ± 1 dB (0.04 to 4 A/m) |
| Accessory Type | Probe |
| Type of Frequency Response | Flat |
| Probe Measurement Range | 0.018 - 20 A/m |
| Axial Isotropy | ± 1 dB |
| Calibration Period | 24 months (recommended) |
| Damage Level | 35 A/m (350 A/m Peak 1 μs, period 100 μs) |
| Applications |
|
| Operating Temperature | - 10 °C t° 50 °C |
| Dynamic Range | 60 dB |
| Sensor Type |
Isotropic RMS diode technology |
| Dimensions | 28.4 cm x 6 cm Ø |
