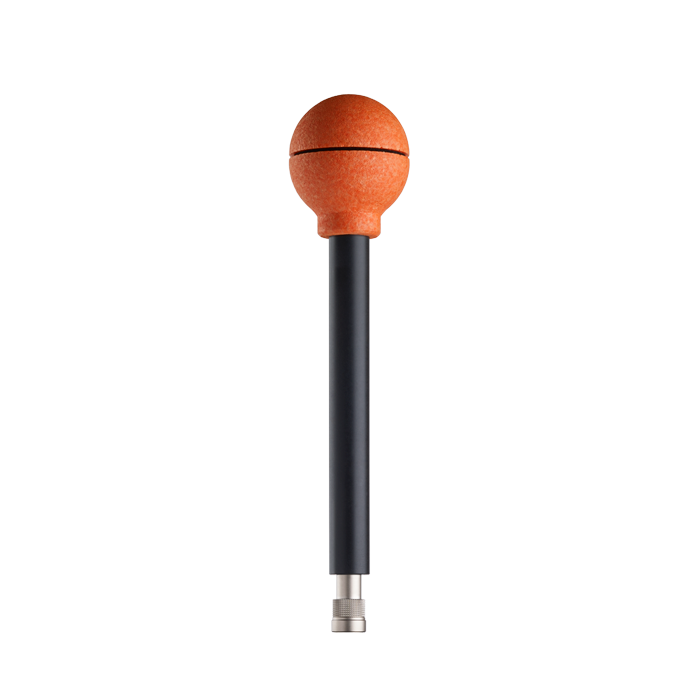

WPF60 field probe 1 MHz to 60 GHz
Capable of measuring E field from 1 MHz to 60 GHz broadband the WPF60 field probe is compatible with Wavecontrol’s SMP2, MonitEM and MonitEM-Lab equipment.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response |
± 2 dB (2 MHz – 17 GHz) ± 3 dB (17 GHz – 40 GHz) ± 6 dB (40 GHz – 60 GHz) - 3 dB @ 1 MHz |
| Frequency Range | 1 MHz - 60 GHz |
| Sensitivity | 1 V/m |
| Linearity |
± 2 dB (1 – 2 V/m) ± 1 dB (2 – 250 V/m) |
| Accessory Type | Probe |
| Type of Frequency Response | Flat |
| Probe Measurement Range | 1 – 1000 V/m (CW), 1 – 55 V/m (RMS) |
| Calibration Period | 24 months (recommended) |
| Damage Level | (CW) 1200 V/m |
| Attenuation at 50 / 60 Hz | > 40 dB |
| Applications |
|
| Operating Temperature | - 20 °C t° 50 °C |
| Dynamic Range | 60 dB |
| Sensor Type |
Isotropic RMS diode technology |
| Isotropic Deviation | ± 1.1 dB (< 12 GHz) ± 2.2 dB typ. (12 GHz to 60 GHz) |
| Dimensions | 28.4 cm x 6 cm Ø |
| Calibration | ISO 17025 Accredited Calibration (ILAC) |
