Wavecontrol

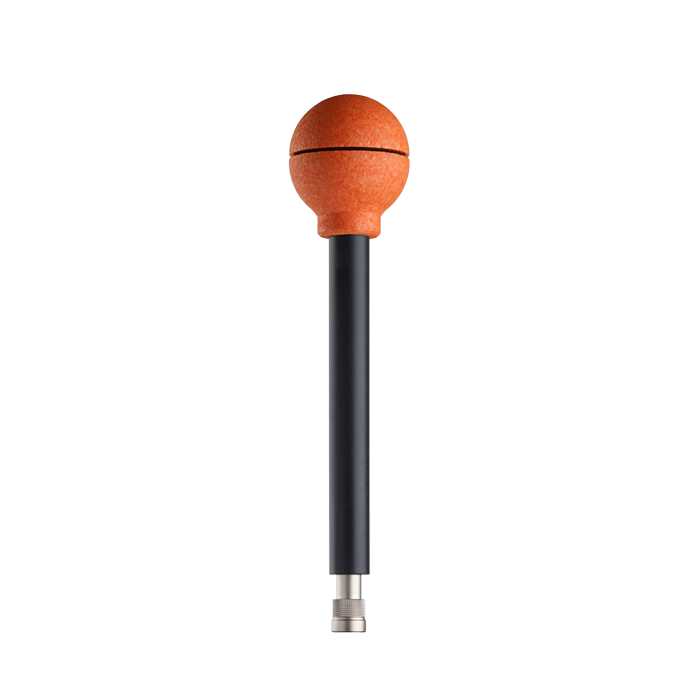

WPF6 field probe 100 kHz to 6 GHz

main product photo
Capable of measuring E field from 100 kHz to 6 GHz broadband the WPF6 field probe is compatible with Wavecontrol’s SMP2, MonitEM and MonitEM-Lab equipment.

Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).

Industry
Assessment of industrial processes for worker’s exposure protection.

Defence
Assessment of military sites and personnel exposure protection.

Labs/R&D
RF exposure protection of R&D and labs personnel.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • High sensitivity from 0.2 V/m
  • Isotropic & True RMS measurement
  • Excellent attenuation at 50/60 Hz
  • Measurements in accordance with International Standards
Frequency Response better than -3 dB @ 100 kHz
±1.5 dB (250 kHz – 5.5 GHz)
better than -2 dB (5.5 – 6 GHz)
Frequency Range 100 kHz – 6 GHz
Sensitivity 0.2 V/m
Linearity ± 0.5 dB (0.5 V/m – 100 V/m)
Resolution 0.02 V/m (until 7.5 V/m)
0.1 V/m (from 7.5 V/m to 130 V/m)
Accessory Type Probe
Type of Frequency Response Flat
Probe Measurement Range WPF6
0.2 – 130 V/m (CW), 0.2 – 20 V/m (RMS)
WPF6-HP (High Powered Version):
0.2 – 1000 V/m (CW), 0.2 – 20 V/m (RMS)
Calibration Period 24 months (recommended)
Attenuation at 50 / 60 Hz > 80 dB
Applications
  • Telecommunications:
    • Wireless telecom networks: IEC 62232, EN 50400, EN 50401, EN 50492
    • Broadcast: IEC 62577, EN 50475, EN 50476, EN 50496, EN 50554
  • RFID/EAS: EN 50364, EN 50357, IEC/EN 62369-1
  • Induction heating (HF): EN 50519
  • Plastic welding
  • Semiconductor production
  • Medical: IEC 60601
  • Workplace assessment: EN 50499
  • Assessment of workers bearing AIMDs: EN 50527-1
  • Human exposure assessment: EN 50413
  • Research/Labs
  • Microwave drying
Operating Temperature - 20 °C t° 50 °C
Dynamic Range WPF6: 56 dB
WPF6-HP (High Power version): 73 dB
Sensor Type Isotropic
RMS diode technology
Isotropic Deviation ±0.3 dB (1 GHz)
±1 dB (6 GHz)
Dimensions 28.4 cm x 6 cm Ø
Calibration ISO 17025 Accredited Calibration (ILAC)
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. SMP2

    SMP2
  2. MonitEM

    MonitEM
  3. MonitEM-Lab

    MonitEM-Lab

Related Products

  1. WPF60S

    WPF60S
  2. WP400c

    WP400c
  3. WPF3

    WPF3
  4. WP400

    WP400

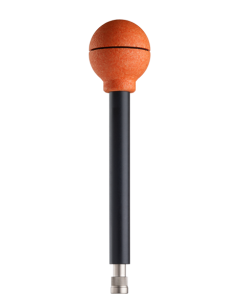

  5. WPF8
