Wavecontrol

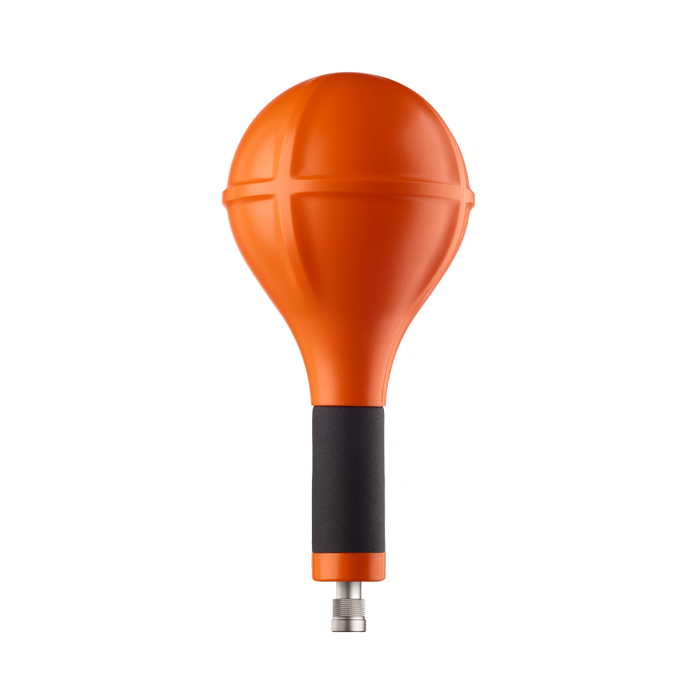

WP400c field probe 1 Hz to 400 kHz
Capable of measuring E and H fields from 1 Hz to 400 kHz selective and broadband the WP400c field probe is compatible with Wavecontrol’s SMP2 equipment.
Uses include:
Power grid: Measurement of the exposure to EM fields at transformer stations and high-voltage lines.
Railway: Measurement of EM fields in trains and in the railway environment with respect to human exposure.
Industry: Assessment of workers’ exposure to EM fields in all kind of manufacturing facilities.
Uses include:
Power grid: Measurement of the exposure to EM fields at transformer stations and high-voltage lines.
Railway: Measurement of EM fields in trains and in the railway environment with respect to human exposure.
Industry: Assessment of workers’ exposure to EM fields in all kind of manufacturing facilities.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Range | 1Hz–400kHz |
| Linearity |
± 1 % (typ.) ± 2 % (max.) |
| Resolution |
Electric Field: < 0.4 mV/m above 8 Hz Magnetic Field: <0.1nT(at50Hz) and < 0.05 nT above 100 Hz |
| Accessory Type | Probe |
| Probe Measurement Range |
1 V/m to 100 kV/m 50 nT - 30 mT @ 50 Hz 50 nT - 1.5 mT (820 Hz - 40 kHz) · Upper range increases linearly with decreasing frequency below 820 Hz. · Upper range decreases linearly with increasing frequency above 40 kHz. |
| Standards / Limits |
EU Directive 2013/35/EU, IEEE (except Restricted and Limb), ICNIRP, BGV B11, GB 8702-2014. Easy software update to future modifications and to other limits. |
| Peak Value | digital realtime |
| Noise Level |
Electric Field: <1V/m(10Hz-400kHz) Magnetic Field: <50nT(10Hz–400kHz) |
| Damage Level |
Electric Field: > 200 kV/m Magnetic Field: > 2000 mT up to 60 Hz Damage level decreases linearly with increasing frequency above 60 Hz |
| Temperature Deviation |
Electric Field: - 0.005 dB/°C (- 15 °C to 40 °C) Magnetic Field: - 0.003 dB/°C (- 15 °C to 25 °C), + 0.003 dB/°C (25 °C to 40 °C) |
| Typical Uncertainty |
Electric Field: 0.67 dB Magnetic Field: 0.60 dB |
| Isotropy |
Electric Field: ± 5% Magnetic Field: ±4 % |
| Sensor Type | Isotropic patented electrodes |
| Applications |
|
| Dimensions | 280 mm x 128 mm Ø |
| Display | RMS, Axis Values, AVG, MAX, MIN, PEAK, RMS time graph |
