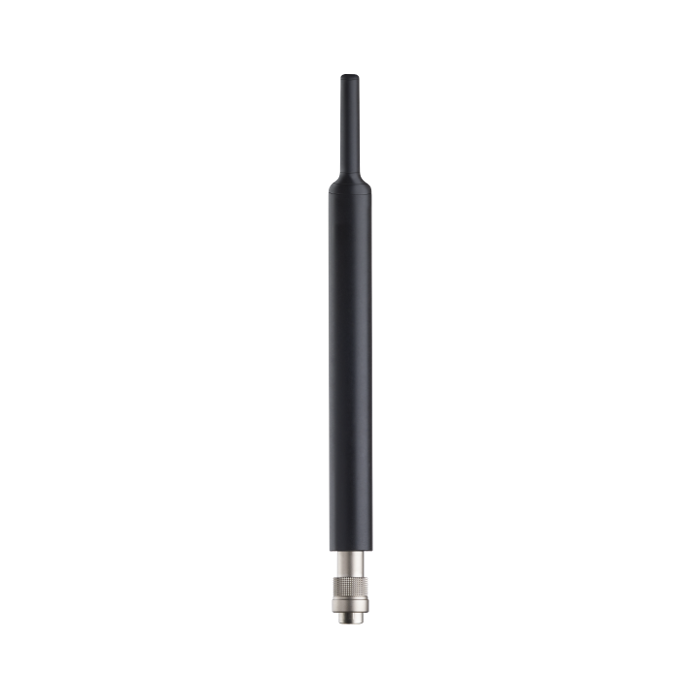

WPH-DC probe DC to 40 kHz
Capable of measuring H field from DC to 40 kHz selective and broadband the WPH-DC probe is compatible with Wavecontrol’s SMP2 equipment.
Uses include:
Medical
Magnetic resonance in hospitals. Implants protection.
Railway
High static field due to DC powered railroads.
Industry
Exposure assessment of electrical vehicles, H electrolysis, permanent magnets, DC generators, etc.
Uses include:
Medical
Magnetic resonance in hospitals. Implants protection.
Railway
High static field due to DC powered railroads.
Industry
Exposure assessment of electrical vehicles, H electrolysis, permanent magnets, DC generators, etc.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Range |
Static Field: 0 – 1 Hz Static and Variable Field: 0 – 40 kHz Variable Field: 1 Hz – 40 kHz |
| Linearity |
0.6% (100 uT – 1 T) 1% (100 uT – 2.4 T) |
| Resolution | < 50 nT |
| Display |
Static Field: Static field, axis information Variable Field: RMS, Peak, FFT, axis information |
| Accessory Type | Probe |
| Probe Measurement Range | 10 uT – 10 T |
| Noise Level | < 5 uT |
| Calibration Period | 24 months (recommended) |
| Overload | 20 T |
| Low Pass Filter |
Static Field: 1Hz Variable Field: None |
| Applications |
|
| Dynamic Range | > 120 dB |
| Sensor Type | Triaxial Hall sensor |
| Dimensions | 273 x Ø 21 (mm) – Sensor stick Ø 9.4 (mm) |
