Wavecontrol

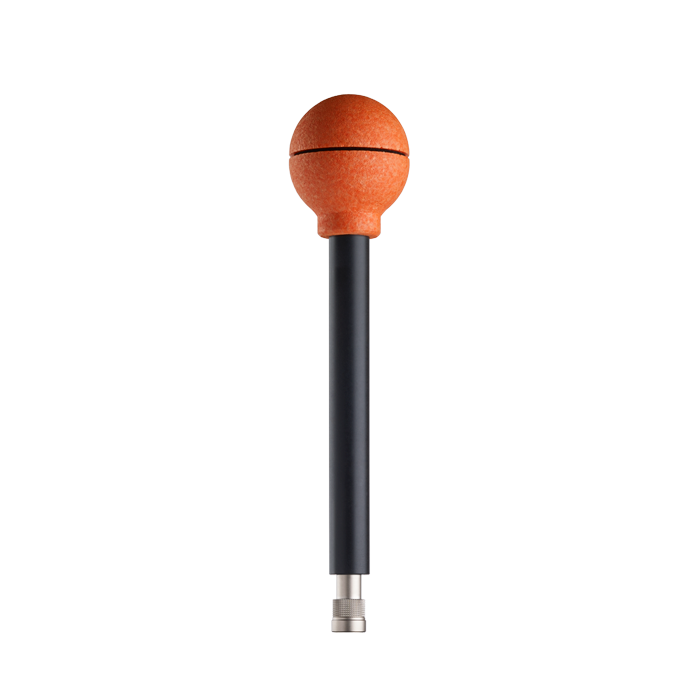

WPF8 field probe 100 kHz to 8 GHz
Capable of measuring E field from 100 kHz to 8 GHz broadband the WPF8 field probe is compatible with Wavecontrol’s SMP2, MonitEM and MonitEM-Lab equipment.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Uses include:
Telecommunications
Certification and audit of telecommunication services (GSM, 3G, LTE, TDT, AM, FM, WiFi, etc.).
Industry
Assessment of industrial processes for worker’s exposure protection.
Defence
Assessment of military sites and personnel exposure protection.
Labs/R&D
RF exposure protection of R&D and labs personnel.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response |
± 1.5 dB (250 kHz – 6 GHz) + 0.5 / - 2.5 dB (6.5 GHz - 8 GHz) - 3 dB (100 kHz) |
| Frequency Range | 100 kHz - 8 GHz |
| Sensitivity | 0.2 V/m |
| Linearity | ± 0.5 dB (0.5 V/m - 100 V/m) |
| Resolution |
0.02 V/m (until 7.5 V/m) 0.1 V/m (from 7.5 V/m to 130 V/m) |
| Accessory Type | Probe |
| Type of Frequency Response | Flat |
| Probe Measurement Range |
WPF8 0.2 - 130 V/m (CW), 0.2 - 20 V/m (RMS) WPF8-HP (High Powered Version) 0.2 – 1000 V/m (CW), 0.2 - 20 V/m (RMS) |
| Calibration Period | 24 months (recommended) |
| Attenuation at 50 / 60 Hz | > 80 dB |
| Applications |
|
| Operating Temperature | - 20 °C t° 50 °C |
| Dynamic Range |
WPF8: 52 dB WPF8-HP (High Power version): 70 dB |
| Sensor Type |
Isotropic RMS diode technology |
| Isotropic Deviation | ± 1 dB (@ 2 GHz) |
| Dimensions | 28.4 cm x 6 cm Ø |
| Calibration | ISO 17025 accredited (ILAC) |
