Wavecontrol

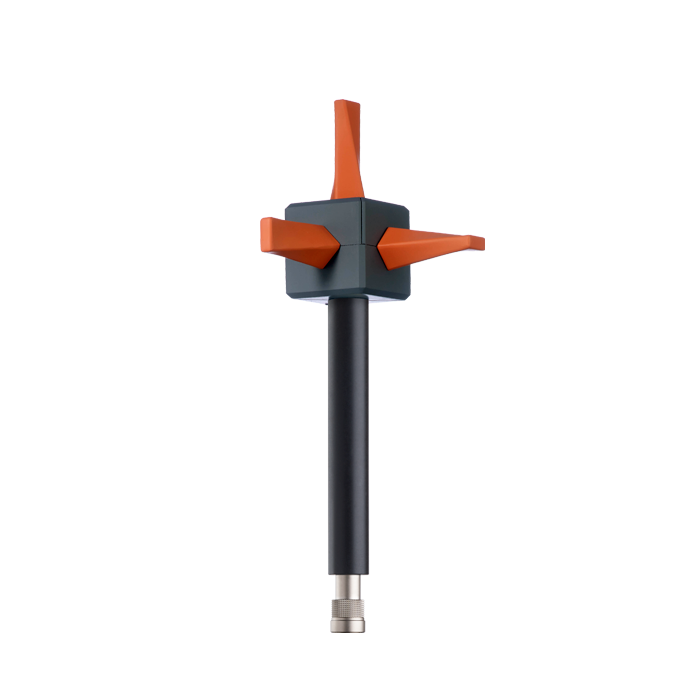

WPT field probe - bands 700-900, 1800-1900, 2100 and 2600
Capable of measuring E field bands 700-900, 1800-1900, 2100 and 2600 selective and broadband the WPT field probe is compatible with Wavecontrol’s SMP2 and MonitEM equipment.
Uses include:
Telecommunications
The WPT probe allows measurement of the electomagnetic field only within the mobile telephone spectrum, ignoring all other sources of radiation.
Uses include:
Telecommunications
The WPT probe allows measurement of the electomagnetic field only within the mobile telephone spectrum, ignoring all other sources of radiation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response | ± 3.3 dB |
| Frequency Range | 700-900, 1800-1900, 2100 and 2600 Bands |
| Sensitivity | 0.04 V/m |
| Linearity | < ± 0.4 dB (0.2 - 50 V/m) |
| Resolution | 0.07 dB |
| Interband Attenuation |
> 20 dB (1100 MHz) > 5 dB (2300 MHz) |
| Accessory Type | Probe |
| Probe Measurement Range | 0.04 – 65 V/m (RMS) |
| Calibration Period | 24 months (recommended) |
| Applications |
|
| Operating Temperature | - 30°C t° + 80°C |
| Dynamic Range | > 64 dB |
| Sensor Type | Isotropic, True RMS |
| Isotropic Deviation | < ± 1.7 dB |
| Dimensions | 28.5 x 10.5 x 10.5 cm |
| Calibration | ISO 17025 accredited (ILAC) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
