Surge Voltage Protector
Attachment plug with replaceable gas discharge tube for coaxial signal interfaces

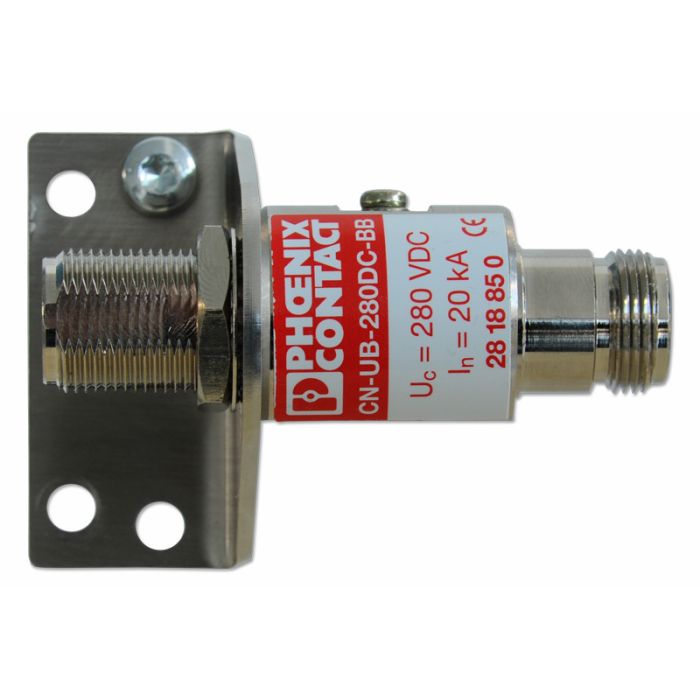

Connection: N connector female/female. The MBG S-PRO set includes a surge voltage protector (Phoenix CN-UB-280DC-BB) and a mounting bracket.
The surge voltage protector for coaxial lines has to be installed in the antenna line. The shield has to be connected to earth as short as possible. CN-UB-280DC-BB is equipped with two type-N female connectors. It has no dedicated input/output polarity or preferred mounting orientation.
Connection: N connector female/female. The MBG S-PRO set includes a surge voltage protector (Phoenix CN-UB-280DC-BB) and a mounting bracket.
The surge voltage protector for coaxial lines has to be installed in the antenna line. The shield has to be connected to earth as short as possible. CN-UB-280DC-BB is equipped with two type-N female connectors. It has no dedicated input/output polarity or preferred mounting orientation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/cn-ub-280dc-installation-instructions.pdf https://www.meinbergglobal.com/download/docs/manuals/english/mbg-spro.pdf |
| Form Factor |
Housing material - Nickel-plated brass,
Color - nickel |
| RoHS | Yes |
| Features |
Replaceable gas discharge tube
splash proofed Grounded by ground bond conductor (not included) less than 3ft (1m) long and a minimum diameter of 10AWG/3,5qmm |
| Response Time |
tA (Core-Earth) ≤ 100 ns
tA (Core-GND) ≤ 100 ns |
| Protection | IP55 |
| Scope of supply | Surge voltage protector and mounting bracket |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Antenna Connector |
Connection method: N connector 50 Ω
Connection type IN: N connector, female Connection type OUT: N connector, female |
| Current Consumption | Nominal current IN: 5 A (25 °C) |
| Nominal Discharge Surge Current |
In (8/20) µs (Core-Earth) 20 kA
In (8/20) µs (Core-Shield) 20 kA |
| Total Surge Current |
(8/20)µs 20 kA
(10/350)µs 2,5 kA |
| Key Features |
Surge Voltage Protector for coaxial Lines
Easy mounting Replaceable, gas-filled arrester For outdoor installations |
| Operating Temperature | -40 °C ... 80 °C |
| Dimensions | Height: 25 mm, Width: 25 mm, Depth: 67 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
