Multi GNSS Antenna
Multi GNSS Antenna
Meinberg
L1 GPS/Galileo/GLONASS/Beidou Antenna
GPS / Galileo / GLONASS / Beidou Antenna with Integrated Lightning Protection
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/gps-gln-l1-antenna.pdf |
| RoHS | Yes |
| Further information |
The Multi GNSS L1 antenna has been specifically designed for long-lasting, trouble-free deployments in congested cell-site applications. The low noise, high gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs (up to 70 meter of Belden H155 coax).

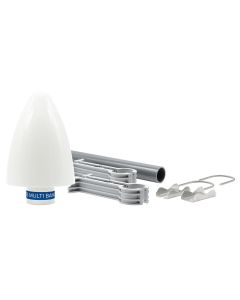

The proprietary quadrifiliar helix design, coupled with multistage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas. Their unique radome shape sheds water and ice, while eliminating problems associated with bird perching. The antenna can be purchased standalone or in combination with a pipe mounting kit. |
| Protection | IP67 |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Type of Antenna |
40 dB GPS L1/GLONASS L1
Antenna with Integrated Lightning Protection Frequency Band: 1575.42 ± 10 MHz / 1602-1615 MHz Antenna Gain: ≥ 3.5 dBic / ≥ 3 dBic Nominal Impedance: 50 ohms |
| Antenna Connector | type-N connector |
| Key Features |
Antenna connected with up to 70m of coax cable type Belden H155
With Mounting Kit for pipes, diameter range from 2.5 to 8.5 inch. The antenna provides integrated lightning protection capability |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 7.25” H x 3.2” D |
| Power Supply | 3.3 - 9.0 V DC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
