The Ideal High-Contrast Time and Date Display Solution for Industrial Applications
High-Accuracy Time & Date at a Glance

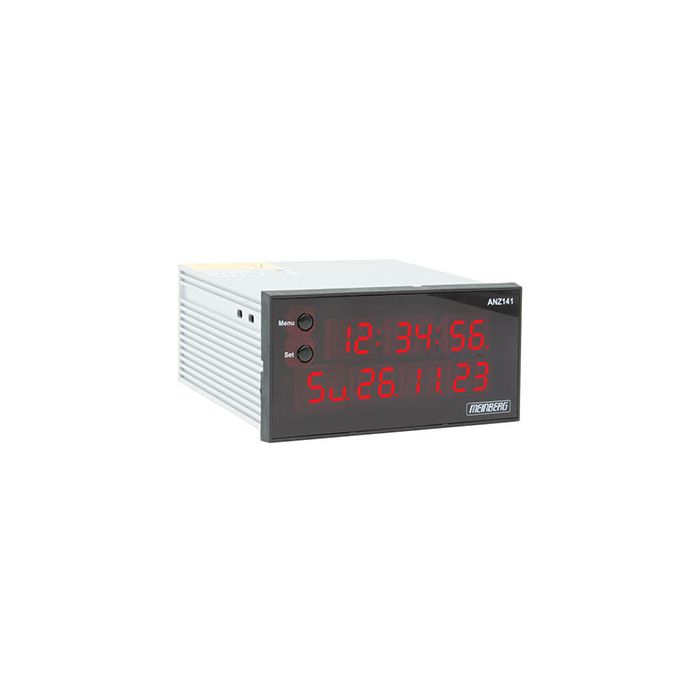

The ANZ141/NET allows the time & date provided by a high-accuracy source to be displayed directly via a high visibility, high-contrast LED display that is readable in almost any conceivable lighting conditions and can be set to one of ten brightness levels.
The Meinberg ANZ141 is synchronised via its DSUB9 serial interface (“COM port”) with a compatible time string containing both the time and date. It can optionally also be fitted with an integrated network interface (ANZ141/NET) or DCF77 long-wave receiver (ANZ141/DCF) to enable synchronisation with an NTP server, PTP master, or the German DCF77 time service.
The integrated PTP slave capability of the ANZ141/NET supports both the C37.238-2017 Power and G.8265.1 Telecom profiles for use with industry-compliant PTP networks.
In the event of the upstream time reference failing for any reason, the ANZ141 will continue to operate reliably using the integrated real-time clock, and in the event of a loss of power to the ANZ141, the real-time clock will continue to operate accurately off the integrated goldcap capacitor or an optional lithium cell battery.
Network Connectivity
The ANZ141/NET features a physical interface that allows the device to be easily connected to any IP network. The network interface enables not only for communication with the NTP server or PTP master but also serves as an additional management interface for communication with the free Meinberg Device Manager Tool.
NTP Support
The ANZ141/NET provides NTPv4 client functionality with a full software implementation to allow it to acquire the time from a defined NTP server.
IEEE 1588 PTP Support
The ANZ141/NET provides a software-level PTP slave interface to allow it to synchronize to a PTP master.
Management
The ANZ141/NET is managed over a serial or network connection using the free management and monitoring tool Meinberg Device Manager.
Previous Models -
ANZ14 - LED Display with DCF77 Radio Clock Option (ANZ14/DCF77)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Warranty | 3 Years |
| Interface | Two serial Interfaces: RS-232 / RS-422 Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 Baud Framing Options: 7N2, 7E1, 7E2, 8N1, 8N2, 8E1 RS-422 Out via COM 0; RS-422 In via COM 1 Output Strings: Meinberg Standard, SAT, NMEA RMC, NMEA GGA, NMEA ZDA, NMEA RMC GGA (RMC followed by GGA), Uni Erlangen, Computime, Sysplex 1, SPA, RACAL, ION, ION Blanked, IRIG-J-1, ATIS, 6021, Freelance Reference Strings: Meinberg Standard, Uni Erlangen, ATIS, SAT, Computime |
| Electrical Connectors | Two 9-pin SubD female connectors (COM0 / COM1) RJ-45 Network connector (ANZ141/NET only) Antenna connection via BNC female (ANZ141/DCF only) IEC mains plug (AC power supply) 3-pin MSTB (DC power supply) |
| WEEE status of the product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
| Supported PTP Profiles |
IEEE 1588-2008 Profiles:
|
| Network protocols | IPv4 (with DHCP support) VLAN tagging with PCP QoS SNMPv1 for monitoring |
| Backup Battery Type | When main power supply fails, hardware clock runs free on quartz basis, life time of lithium battery min. 10 years |
| RoHS | This product is fully RoHS-compliant. |
| Display | 14-digit alphanumeric LED display for time and date 12 digits as 8-segment units, 2 digits as 14-segment units 14 mm / 13 mm character height (time / date) Brightness adjustable in 8 levels Modulation indicated by LEDs Setup and menu buttons for configuration Operable in free-run mode without reference source or when reference source is temporarily lost |
