Bird

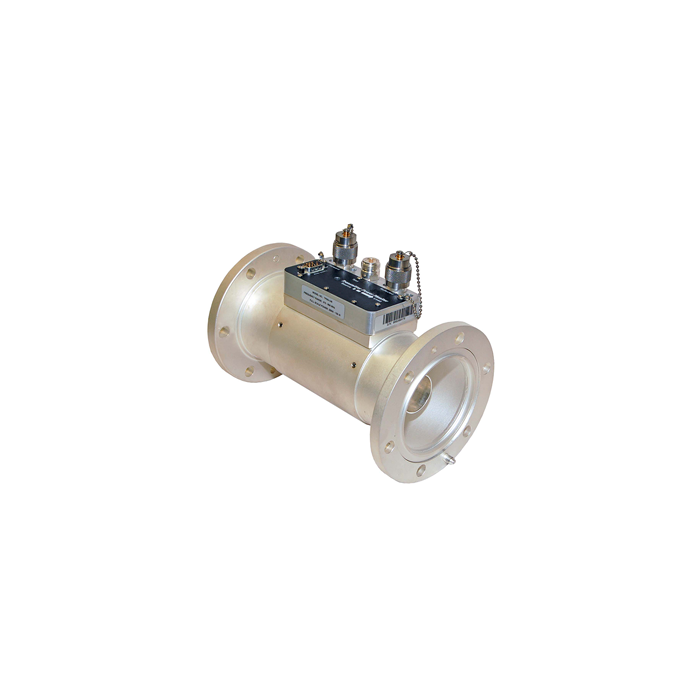

Transmitter RF Power Monitors - In Situ Calibration
World Class first in-situ power measurement standard. Calibrate during operation, while ON-AIR. Never any need to remove from service which equates to no downtime. Traceable to National Institute of Standards and Technology (NIST).
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
TPM Series Specifications
- Low Cost in-situ power measurement solution designed for operation inside the transmitter or after the combiner.
- In-line calibration capability allows for greater accuracy in a single application (with an accurate power reference)
- Integrated non-directional coupler allows for spectral analysis of the signal in minimal space requirements
- Accurately measures true average power for digitally modulated systems
- +/- 5% of reading accuracy for both forward and reflected power (10:1 ratio for forward to reflected power)
- 7/8", 1 5/8", and 3 1/8", 50 ohm lines available for FM, VHF, and UHF broadcast frequencies
- DB9 output provides a linear DC voltage output from 0 to 4 volts allowing for a wide variety of interface options.
| Attribute | Value |
|---|---|
| Product Brand Name | Transmitter Power Monitor |
| Manufacturer | Bird |
| Relative Humidity | 95% ± 5% max. (noncondensing) |
| Altitude | Up to 10,000 feet (3,048 m) |
| Frequency Range | L = 54-88 MHz F = 88-108 MHz H = 174-216 MHz U = 470-806 MHz |
| Peak average ratio | 10 dB max. |
| Measurement Type | In-line, True Average Power |
| Forward Power Range | SEE IMAGE 2 |
| Power Accuracy | ± 5% of reading |
| Coupler Directivity | 30 typical, 26 dB min. (RFL) |
| Outputs | DB 9 Voltage I/O |

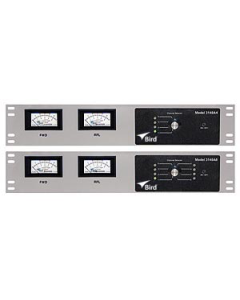

| Display Type | 3140A4 (4 Channel), 3140A8 (8 Channel) |
| Dynamic Range | 16 dB |
| Temperature Range | Operating -10 to +50° C (14 to 122° F) Storage -40 to +80° C (-40 to 176° F) |
| Calibration | Annual - Standard calibration cycle of 1 year for re-verification, but can be re-calibrated by the customer with an accurate power reference See Applications Brochure |
| Interface | DB 9 Voltage I/O |
