Bird RF
Digital Directional Power Sensors

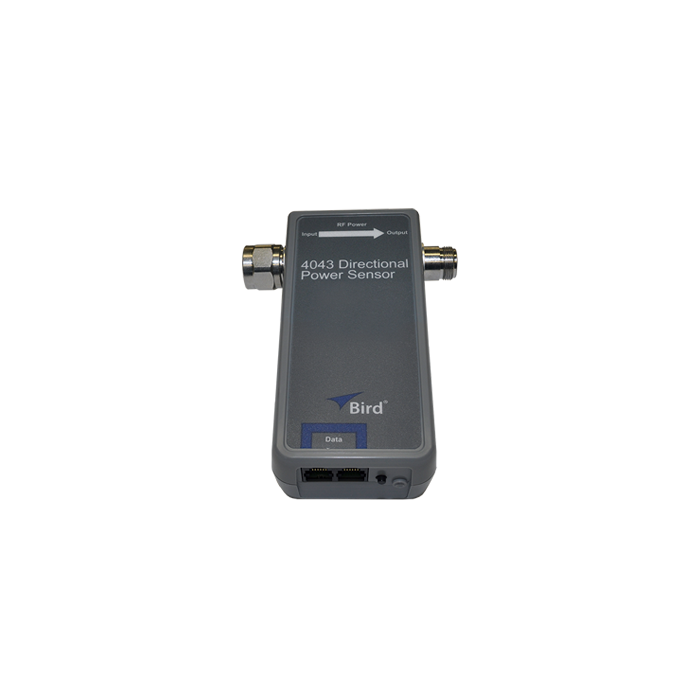

4043 Series, RF Power Sensors are designed for use with the 3141 Channel Power Monitor (CPM) to provide composite power readings. The sensors are typically used to measure forward and reflected average power on a 50 ohm RF transmission line with maximum 500 watt forward and reflected power levels in a frequency band with an overall range of 118 to 940 MHz. The 4043 sensor also provides VSWR readings.
The 4043 has a RS-485 serial bus designed to transfer data to and from a CPM. The serial bus also serves as the RF sensor’s power supply. Each sensor is equipped with two RJ-25 jacks for serial communications, RF input and output connectors, and a status indicator. The second RJ-25 jack may be used to extend the RS-485 bus to another digital sensor.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | Directional RF Power Sensor - RJ-25 |
| Manufacturer | Bird |
| Frequency Range | 118 MHz to 940 MHz (RANGE) |
| Insertion Loss | < 0.2 dB |
| VSWR Range | <1.51:1 (max) |
| PIM | <-145 dBc |
| Forward Power Range | 25 to 500 W |
| Max Reflected Power Measurement | 10 dB below Forward Power Range |
| Power | 7/18 VDC, <50 mA (from 3141) |
| Power Accuracy | +/- 5% of reading |
| Dynamic Range | 13 db |
| Temperature Range | 0 to 50 °C (32 to 122 °F) |
| Dimensions | 5.2" x 3.8" x 1.4" (132 x 96.5 x 35.5 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
