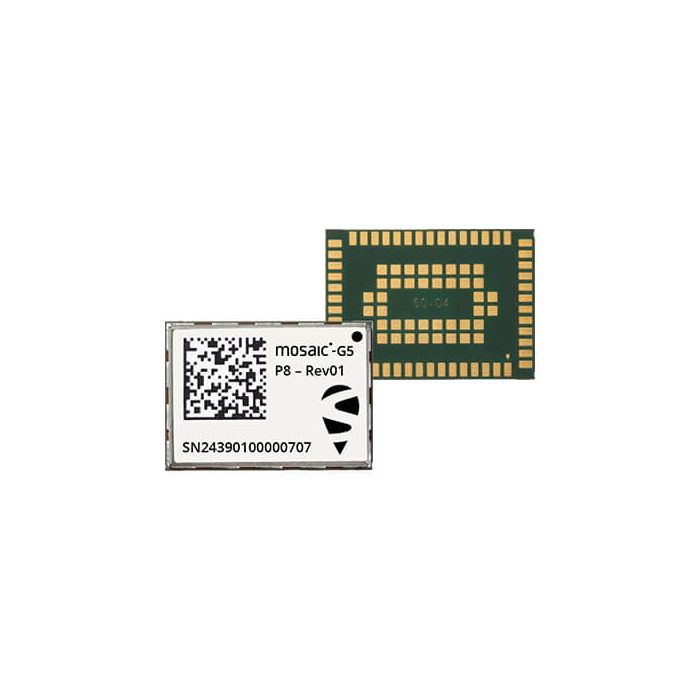

Mosaic-G5 P8
mosaic-g5-p8
Septentrio
Ultra-compact multi-frequency GNSS receiver with ultimate resilience
GNSS technology
789 hardware channels for simultaneous tracking of all visible supported satellite signals:
- GPS: L1C/A, L1C, L2C, L2PY, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3I
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- QZSS: L1C/A, L1 C/B, L2C, L5, L6
- Navic: L5
- On module L-band (in single antenna configuration)
GNSS Heading
Galileo High Accuracy Service (HAS)
Galileo OSNMA
Full raw measurement data
4-constellation RTK (rover)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Request a Septentrio mosaic-G5 P8 Demo
Discover how the Septentrio mosaic-G5 P8 delivers high-performance GNSS positioning and reliability in demanding applications by requesting a demo with one of our experts.
| Attribute | Value |
|---|---|
| Size | 22.8 x 16.4 x 2.4 mm |
| Weight | 2.2 g |
| Operating Temperature |
-40 to 85°C -40 to 185°F |
| Data connection protocol |
Septentrio Binary Format (SBF) NMEA 0183, v2.3, v3.03, V4.0 RTCM v3.x (MSM included) Authenticated in- and output through DTLS |
| Vibration | IEC 60721-3-5 Profile 5M3 |
| Certifications | CE, FCC, RoHS, WEEE |
| GNSS Technologies |
GNSS technology 789 hardware channels for simultaneous tracking of all visible supported satellite signals:
GNSS Heading Galileo High Accuracy Service (HAS) Galileo OSNMA Full raw measurement data 4-constellation RTK (rover) |
| Electrical |
Antenna pre amplification range: Antenna bias voltage: Input voltage:
|
| Latency | < 10 ms |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
