S4-1513
S4-1513
LOCOSYS Technology
GPS module featuring high sensitivity, low power and an ultra small form factor.

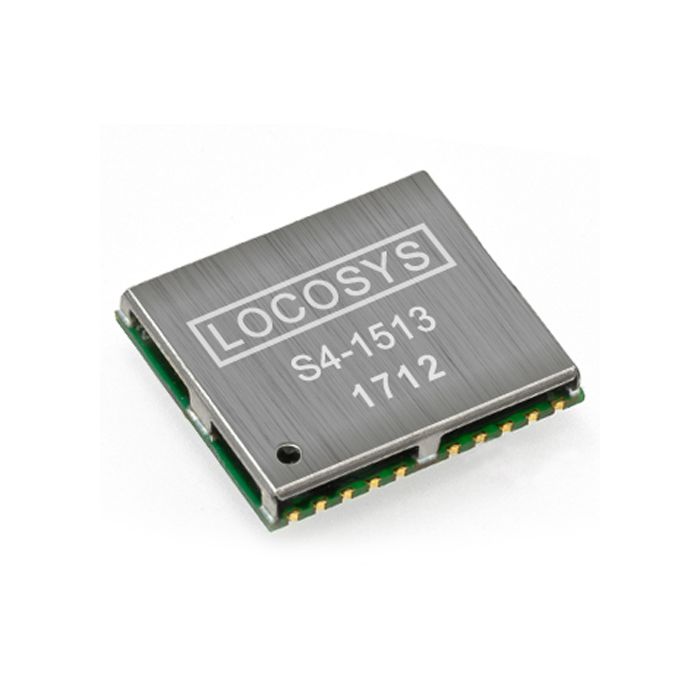

LOCOSYS S4-1513 GPS module features high sensitivity, low power and ultra small form factor. This GPS module's functionality uses the state of the art SiRF GSD4e-9411 chip and it provides you with superior sensitivity and performance even in urban canyon and dense foliage environment. With SiRF CGEE (Client Generated Extended Ephemeris) technology, it predicts satellite positions for up to 3 days and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance. Besides, MicroPower Mode allows GPS module to stay in a hot-start condition nearly continuously while consuming very little power.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 1.71V - 1.89V |
| Module Type | GPS Module |
| Satellite Systems | GPS, QZSS |
| Power (mA) | 27.5mA |
| VB (uA) | 660uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 15 x 13 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
