TRCP3000
TRCP3000
Tektronix
3,000 A, AC-Only Rogowski Current Probe

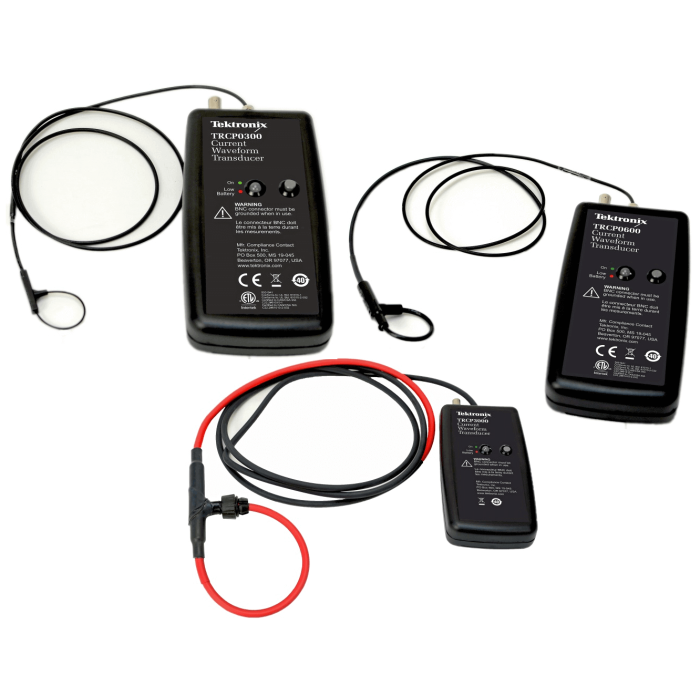

The Tektronix TRCP3000 Rogowski current probe comes equipped with a BNC
connector and works with any instrument supporting the BNC interface. Rogowski probes allow you to easily connect to large connection points such as bus bars or connect to small IC legs on a MOSFET or IGBT.
The TRCP3000 has a larger coil that is capable of handling large overload currents without damage. This probe is easy to use and can be inserted into places that are hard to reach and can be wrapped around larger test points such as bus bars.
- Sensitivity: 10 mV/A
- External probe attenuation setting on an oscilloscope: 100X
- Accuracy (typical): +/- 2% of reading
- Coil diameter: 4.5 mm
- Termination: 1 MΩ BNC
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 16 MHz |
| Whats Included |
AC power adapter |
| Applications |
|
| Accessory Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
