U8555

This product is available in 5-7 weeks

Logger Module for CAN and CAN FD Signals, 10 ms

Key Features

• Input and output of CAN and CAN FD signals
• 2 ports freely configurable as input or output
• Max. 10 ms update interval
• Supports CAN (ISO11898), CAN FD (ISO11898), CAN FD (non-ISO)

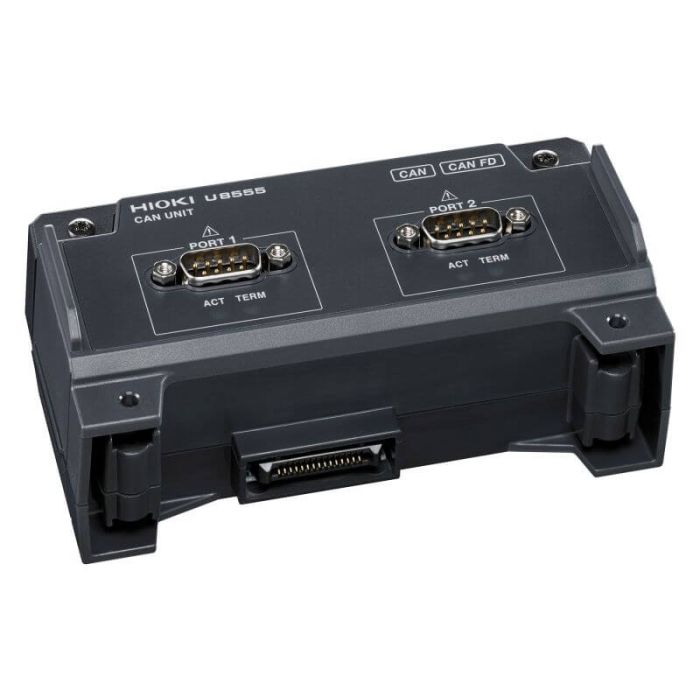

The U8555 CAN Module is a plug-in module for the LR8450 Data Logger Series. Up to four U8555 modules can be connected to a single LR8450 or LR8450-01 Data Logger. Featuring two configurable ports that can work as either input or output, this module supports up to 500 channels/port and delivers a maximum update interval of 10 ms, depending on the number of channels used. It features two D-sub 9-pin male connectors and is compatible with key protocols, including CAN (ISO 11898) and CAN FD in both ISO and non-ISO formats. All measurement data recorded with other modules of the LR8450, e.g. voltage, temperature, current, strain, etc., can be output as CAN data.

This module is ideal for monitoring data from electronic control units within in-vehicle networks during automotive testing and development. It also plays a crucial role in troubleshooting and optimizing industrial processes by capturing CAN-based communication between controllers and devices. In aerospace applications, the U8555 module ensures reliable data transmission between avionics systems, making it an essential tool for high-performance data logging and analysis.
