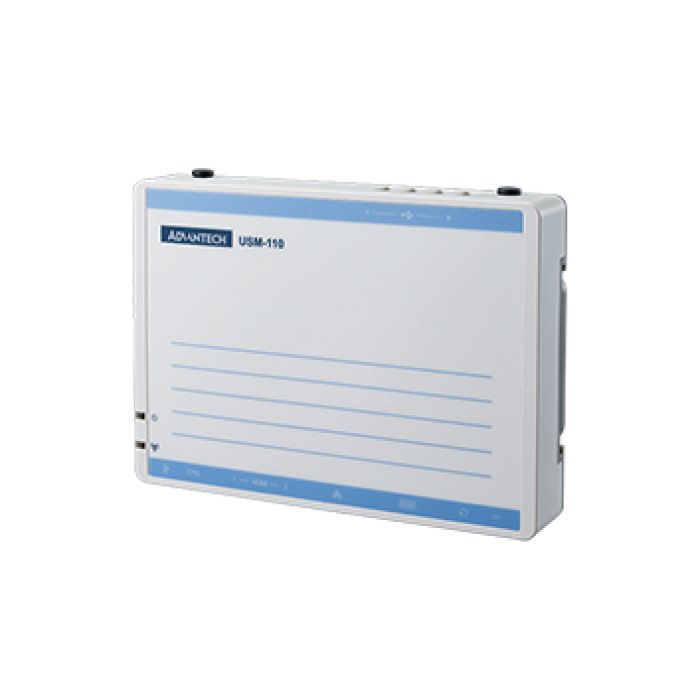

USM-110W
USM-110W
Advantech
Multiple-use clinical gateway
USM-110W is an ITE-certified edge solution-ready platform (SRP) aimed at diverse clinical applications. Powered by an ARM® Cortex™-A17 quad-core processor with over 5 years longevity support and featuring a dual HDMI interface (supports up to 4K resolution) for video recording and analysis and gateway to collect datas. USM-110W provides a cost-effective, scalable solution for edge-to-hospital information system (HIS) and Internet of things (IoT) applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 156 x 112 x 28 mm |
| Operating System | Android 6.0 |
| Power | 12V/3A |
| LED Indicators |
1 x power
1 x wireless |
| CPU | Arm® Cortex®-A17 quad-core processor (1.6 GHz) |
| Primary Storage | 8 GB of onboard eMMC |
| Display Max Resolution |
HDMI 1: Native 4K resolution up to 3840 x 2160 (default 1080p)
HDMI 2: 1920 x 1080 (display only) |
| LAN | 1 x 10/100/1000 Mbps |
| Mounting |
VESA (75 x 75)
|
| HDMI | 1 |
| Certifications | CCC/BSMI/CE/FCC/UL/CB |
| GPU | Mali-T764 |
| Graphics Engine | OpenGL ES 1.1/2.0/3.0, OpenCL 1.1, DirectX 11 |
| H/W Video Codec |
Decoder: 4K 10-bits 60fps H.265, H.264, MPEG-1, MPEG-2, MPEG-4,VC-1, VP8, AVS, MVC
Encoder: 1080P for H.264 ([email protected], MP, [email protected]), MVC and VP8 |
| M.2 | 1 x for Wi-Fi module option |
| USB |
1 x USB 2.0
1 x OTG USB |
| Audio | 1 |
| Micro SD Card Slot | 1.0000 |
| Display Orientation | Portrait and landscape modes supported |
| Clinet Status Reports | Generates Heartbeat, System reports |
| Supported media formats |
Video
Text
Audio
|
| Key Features |
|
| Operating Temperature | 0 - 40° C |
| Software | WIDE-Paas/SignageCMD |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
