Wavecontrol

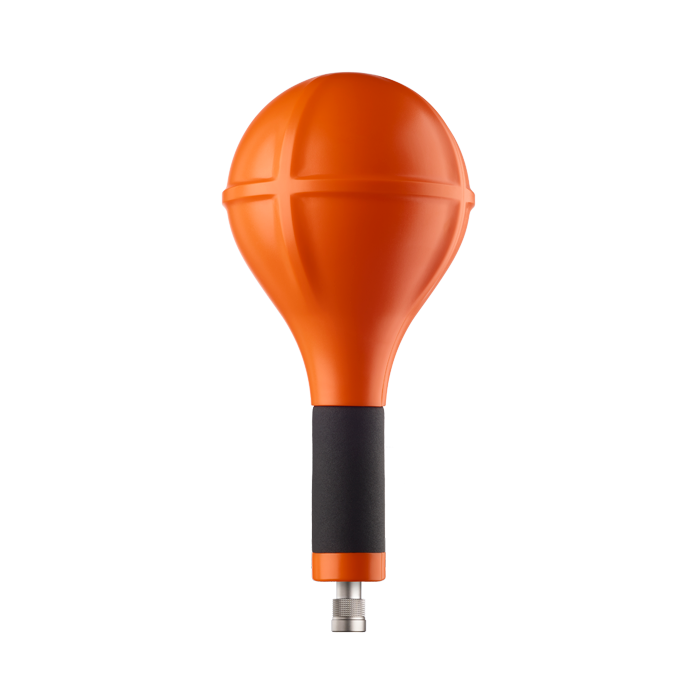

WP50 field probe 10 Hz to 3 kHz
Capable of measuring E and H fields from 10 Hz to 3 kHz the WP50 field probe is compatible with Wavecontrol’s SMP2 and MonitEM equipment.
Uses include:
Power grid: Spot or continuous measurement of E and H at transformer stations and high-voltage lines.
Railway: Measurement of E and H fields generated in trains or near railway facilities.
Industry: Measurement in manufacturing facilities with strong electromagnetic fields to ensure workplace safety.
Uses include:
Power grid: Spot or continuous measurement of E and H at transformer stations and high-voltage lines.
Railway: Measurement of E and H fields generated in trains or near railway facilities.
Industry: Measurement in manufacturing facilities with strong electromagnetic fields to ensure workplace safety.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Frequency Response |
± 20 % (typ.) of standard (25 Hz - 1 kHz) ± 25 % (max.) |
| Frequency Range | 10 Hz - 3 kHz |
| Sensitivity |
Weighted (E, H) 0.025 % Flat response E field 2.5 V/m Flat response H field 0.05 μT |
| Linearity |
± 1 % (typ.) (1 % - 100 % of standard) ± 2 % (max.) |
| Accessory Type | Probe |
| Type of Frequency Response |
1) Weighted (Results displayed in % of the selected standard) 2) Flat response (Results in V/m, μT, etc. ) |
| Exposure Limits |
Public and occupational ICNIRP 2010 Customizable to other standards |
| Probe Measurement Range |
Weighted mode (ICNIRP 2010) : E field: 0.025 % - 200 % of limit (RMS value) H field: 0.025 % - 200 % of limit (RMS value) Field Strength Mode : E field: 2.5 V/m - 20000 V/m (RMS) H field: 0.05 μT - 2000 μT (RMS) |
| Isotropic Response | ± 5 % (typ.) |
| Calibration Period | 24 months (recommended) |
| Field Sensor Area | 100 cm2 |
| Temperature Deviation | Damage_Level+AO3 |
| Operating Temperature | - 15 °C t° 50 °C |
| Dynamic Range | 92 db |
| Sensor Type |
Isotropic, RMS Combined measurement of electric and magnetic field |
| Calibration | ISO 17025 Accredited Calibration (ILAC) |
| Applications |
|
| Dimensions | 270 mm x 115 mm Ø |
