Z3003

Z3003

Hioki

Multiplexer Unit for RM3545-02

Multiplexer Unit for Hioki RM3545-02

Key Features

  • Measurement Channels: > 4-terminal measurement: 10 channels > 2-terminal measurements: 21 channels
  • Contact Type: Mechanical relay
  • Maximum Allowable Voltage: 30 V RMS, 42.4 V peak, or 60 V DC
  • Maximum Allowable Power: 30 W (DC, resistive load)
  • Operating Temperature: 0°C to 40°C
  • Connector: D-sub 50-pin receptacle
  • Dimensions: 92 mm (W) × 24.5 mm (H) × 182 mm (D)
  • Weight: 180 g

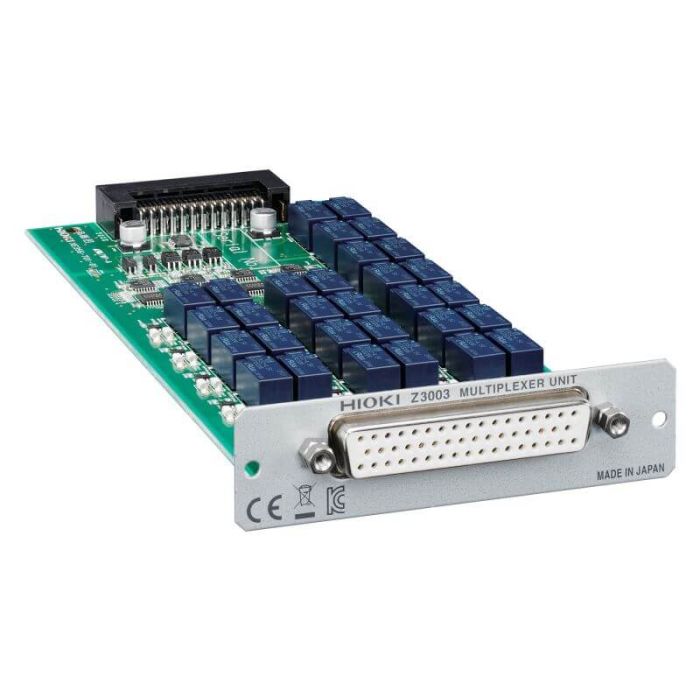

The Z3003 Multiplexer Unit is a versatile module designed for multipoint measurement by freely combining measurement terminals. It is the optional multiplexer unit for Hioki resistance meters such as the RM3545-02 and RM3545A-02, providing 10 channels of 4-terminal measurements for comprehensive multi-point signal assessments. The Z3003 can be embedded into compatible devices, making it ideal for various applications requiring high-precision and flexible measurement configurations.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.

More Information
Attribute Value
Data Sheet Click here to view
