Z5021
Z5021
Hioki
Power Supply Unit for Current or Differential Probes, Factory Option for MR6000
This product is available in 5-7 weeks

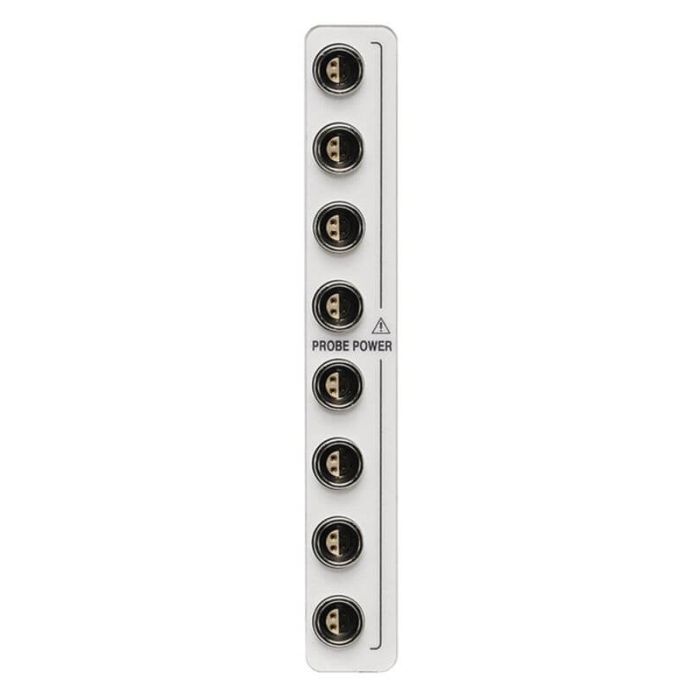

Power Supply Unit for Current or Differential Probes, Factory Option for MR6000The Z5021 Probe Power Unit for the MR6000 Memory Recorder is a factory-installed option designed to provide power to up to eight current probes or clamps from the CT670x or 327x Series. Additionally, the Z5021 supports up to four CT6710 or CT6711 current clamps. For applications requiring higher voltages the Z5021 can power up to eight 9322 or up to three P9000 Differential Probes.
It delivers a stable output voltage of ±12 V DC and a rated output current of 0.6 A per terminal.
The Z5021 must be ordered together with the main instrument at the time of purchase. For an installation at a later stage, the main instrument needs to be sent to a HIOKI service centre.
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
