09380323101
09380323101
Harting

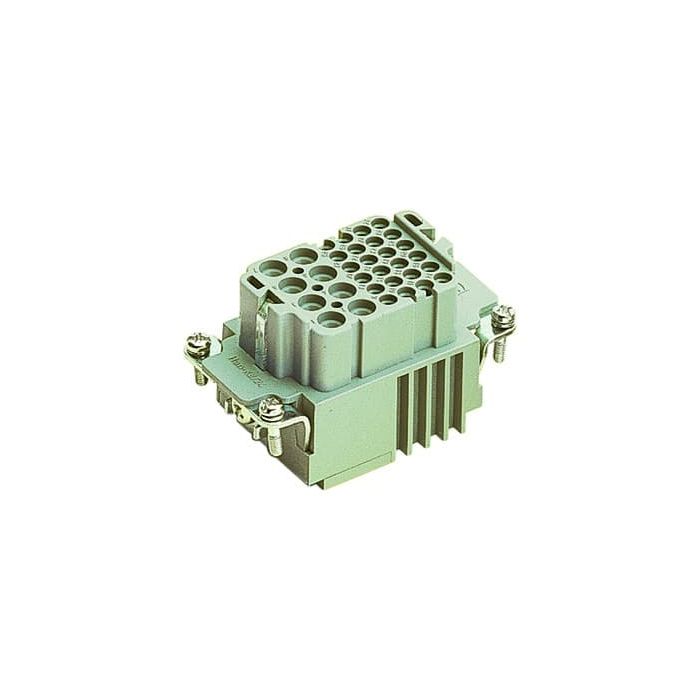

Han K 8/24 Pos. F Insert Crimp
Inserts, Crimp termination, Female, Polyamide (PA), RAL 7032 (pebble grey), Rated current:16 A, Size: 10 B, Contacts: 8, + 24 additional signal contacts, Conductor cross-section: 0.5...4 mm, 0.14...2.5 mm Signal
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | 404 Han-Com® |
Product Family | Han HSC Female Inser |
Product Brand Name | 09 38 032 3101 |
Manufacturer | HARTING |
Customs tariff number | 85389099 |
Quantity Min | 1.0000 |
Quantity Interval | 1.0000 |
Country of origin | RO |
Manufacturer's Brand | Han-Com® |
Size | 10 B |
Number of poles | 8.0000 |
Insertion cycles minimum | 500.0000 |
PE connection present ? | Yes |
Contact design | Socket |
Rated_surge_voltage (V) | 4.0000 |
Wire protection present ? | No |
Insert material | Thermoplast |
Conductor connection method | crimp connection |
Pollution degree | 3.0000 |
Conductor cross-section mm2 | 0.5…4 |
Contact insert without contact ? | Yes |
Fire resistance class | HB |
Standards | EN 60664-1 |
Current Rating (A) | 16.0000 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
