21032121407

21032121407

21032121407

Harting

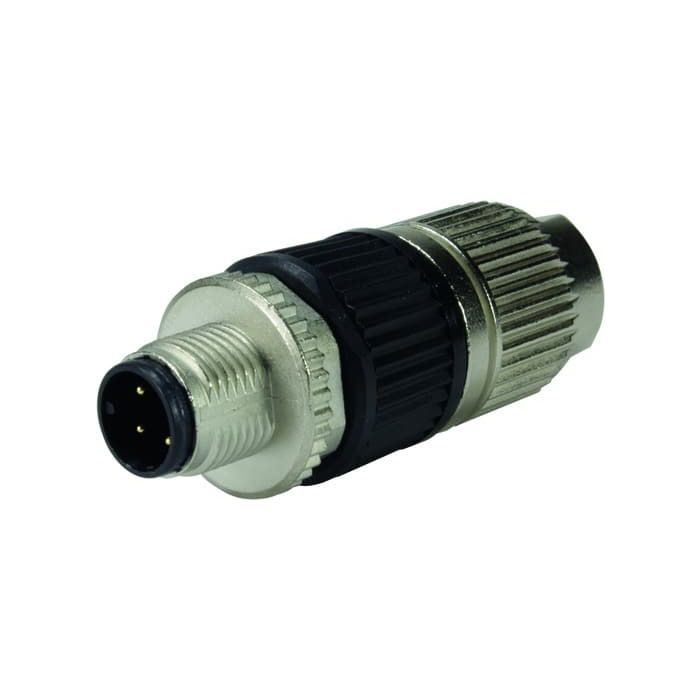

circular Connector w. Harax M12 L4 M

Cable connector, Straight, Male, A-coding, HARAX® connection technology, Polyamide (PA), Contacts: 4, Brass, Gold plated, Conductor cross-section: 0.34...0.75 mm2, Rated current:4 A, Polyamide (PA), Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67, mated condition
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment HARAX Sensor
Product Family Circular Connectors
Product Brand Name 21 03 212 1407
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin DE
Manufacturer's Brand Circular connectors
Material housing Plastic
Material contact surface Gold
Cable diameter (mm) 7…8.8
Insertion cycles minimum 100.0000
Degree of protection - IP (mounted) IP65/IP67
Maximum operating ambient temperature (deg C) 85.0000
Rated voltage (V) 50.0000
Maximum connectable conductor cross section (mm2) 0.75
Minimum connectable conductor cross section (mm2) 0.34
Conductor connection method Insulation displacement termination
Pollution degree 3.0000
Design of housing straight
Interlock type Threaded joint
Screened ? No
Overvoltage category III
Standards IEC 61076-2-101
Body size M12
Housing type Cable
Housing material Plastic
More Information
Attribute Value
Data Sheet Click here to view
