Harting

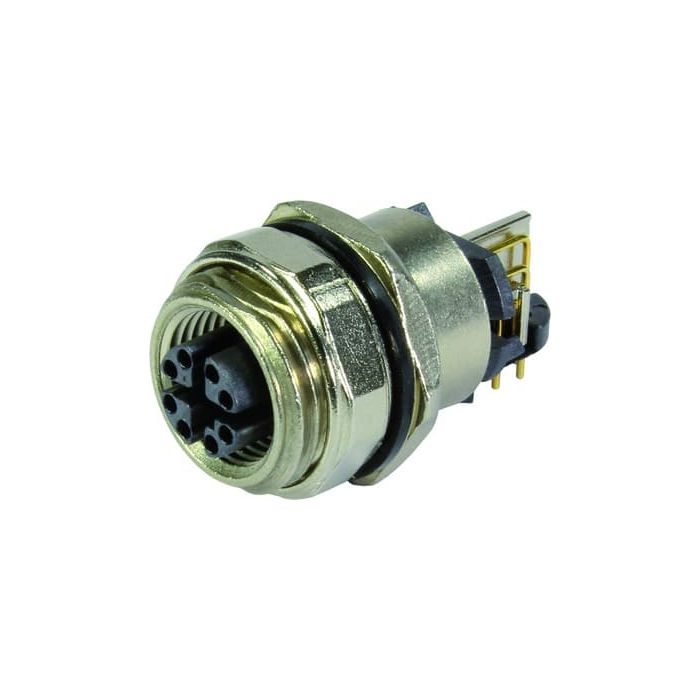

M12 CAT6a Bu gewinkelt HWM
Connectors, PCB adapter, Angled, incl. housing, for rear mounting, Reflow soldering termination (THR), Rated current:0.5 A, Contacts: 8, Copper alloy, Gold plated, Coding: X-coding, Liquid crystal polymer (LCP)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | PCB Receptacles M8/M12 |
Product Family | Circular Connectors |
Product Brand Name | 21 03 381 4804 |
Manufacturer | HARTING |
Customs tariff number | 85389099 |
Quantity Min | 30.0000 |
Quantity Interval | 30.0000 |
Country of origin | RO |
Type of packaging | 30 pieces in a tray |
Number of poles | 8.0000 |
Material contact surface | Gold |
Degree of protection - IP (mounted) | IP65/IP67 |
Rated voltage (V) | 50.0000 |
Contact design | Socket |
Material of insulation | Liquid crystal polymer |
Interlock type | Screw |
Coating plug contact area | Gold (au) |
Type of PCB contacting | THR connection |
Locking system | Screw flange |
Material contact | Other copper alloys |
Current Rating (A) | 0.5 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
