21038812827
21038812827
Harting

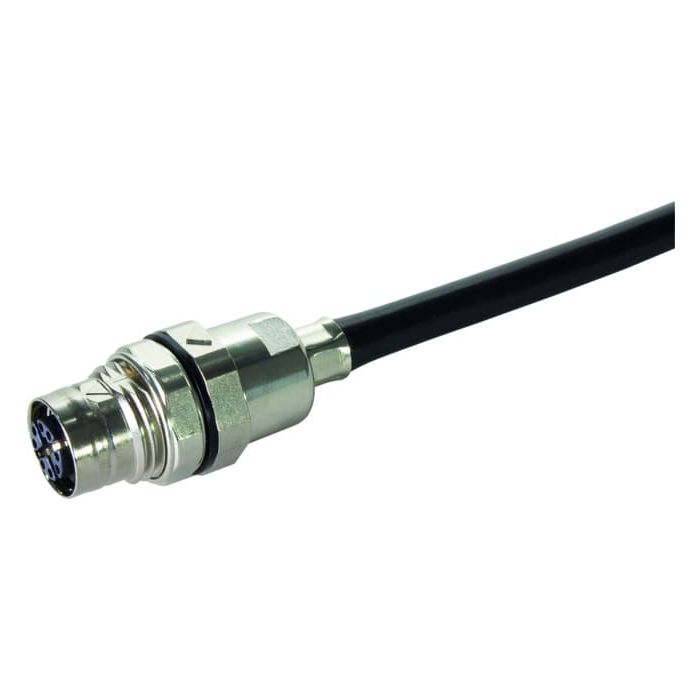

M12 PFT SD female X-coded 8-pole for cri
Cable connector, Panel feed through, for rear mounting, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08...0.25 mm2, Rated current:0.5 A, Zinc die-cast, Screw locking, PushPull, Degree of protection: IP65 / IP67, mated condition
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | M12 Slim Design |
| Product Family | Circular Connectors |
| Product Brand Name | 21 03 881 2827 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | RO |
| Manufacturer's Brand | Circular connectors |
| Material housing | Zink |
| Insertion cycles minimum | 500 |
| Degree of protection - IP (mounted) | IP65/IP67 |
| Maximum operating ambient temperature (deg C) | 85 |
| Rated voltage (V) | 48 |
| Maximum connectable conductor cross section (mm2) | 0.25 |
| Minimum connectable conductor cross section (mm2) | 0.08 |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Design of housing | for rear mounting |
| Interlock type | Threaded joint |
| Screened ? | Yes |
| Overvoltage category | III |
| Standards | IEC 61076-2-109 |
| Body size | M12 |
| Housing type | Cable |
| Housing material | Zink |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
