Keithley 2220-30-1 DC Power Supply | APC Technology Group

2220-30-1

2220-30-1

Keithley Instruments

Programmable Dual Channel DC Power Supply

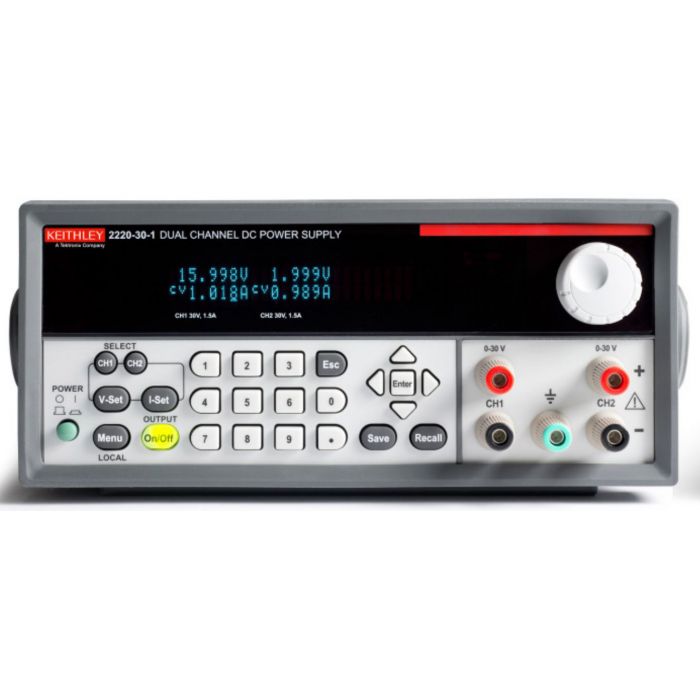

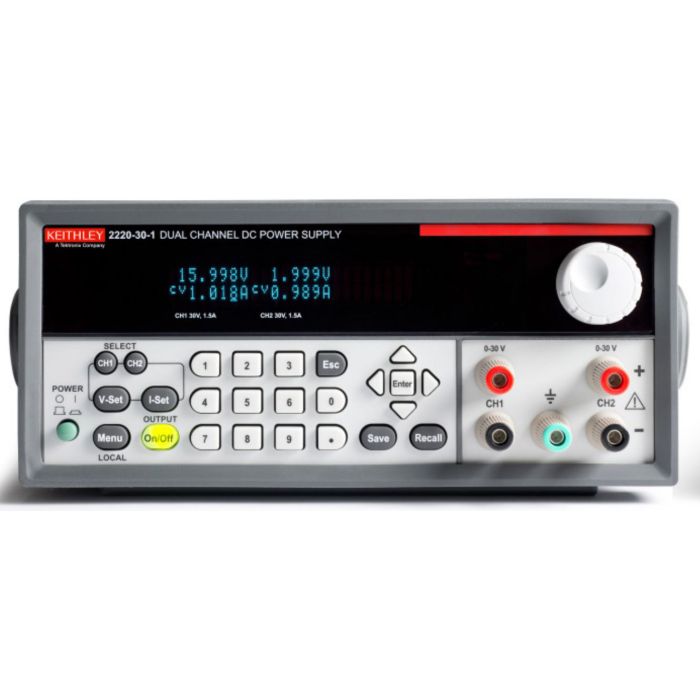

The Models 2220, 2220G, 2230, and 2230G Multi-Channel Programmable DC Power Supplies combine two and three channels of output power to cost-effectively characterise and test a wide range of devices, circuit boards, modules, and products that require more than one power source. The Model 2220-30-1 supply provides two channels, with each channel capable of outputting up to 30V and up to 1.5A.

These multi-channel power supplies offer an excellent combination of performance, versatility, and ease of use to maximise the information from characterisation or test as quickly and as easily as possible. They perform as effectively in automated test systems as they do in manual instrument configurations. The USB interface is standard on all models; the “G” versions add a GPIB interface.

Contact us for lead time

Contact our team for stock availability and product options.

Price £1,150.00

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Key Features
  • Dual output model with two 30V/1.5A (45W) channels
  • All channels are independently controlled and have isolated outputs for maximum flexibility
  • All channels have remote sensing to ensure that programmed voltage is accurately applied to the load
  • Two 30V channels can be combined either in series to double output voltage or in parallel to double output current
  • 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data
  • Low noise, linear regulation with <3mVpp ripple and noise
  • Voltage and current outputs for all channels are displayed simultaneously for easy observation of each output state
  • Keypad entry allows fast, precise entry of output values
  • USB interface standard on all versions for remote control; “G” versions include USB and GPIB interfaces
Manufacturer Product Family Keithley 2220/2230/2231 Series
Maximum Voltage 30V
Maximum Current 1.5A
Power 90 W
Outputs Dual Output
Applications
  • Circuit design
  • Electrial engineering student labs
  • Materials research
  • Automated test
