PWS4602

PWS4602

Keithley Instruments

Programmable DC Power Supply, 60 V, 2 A

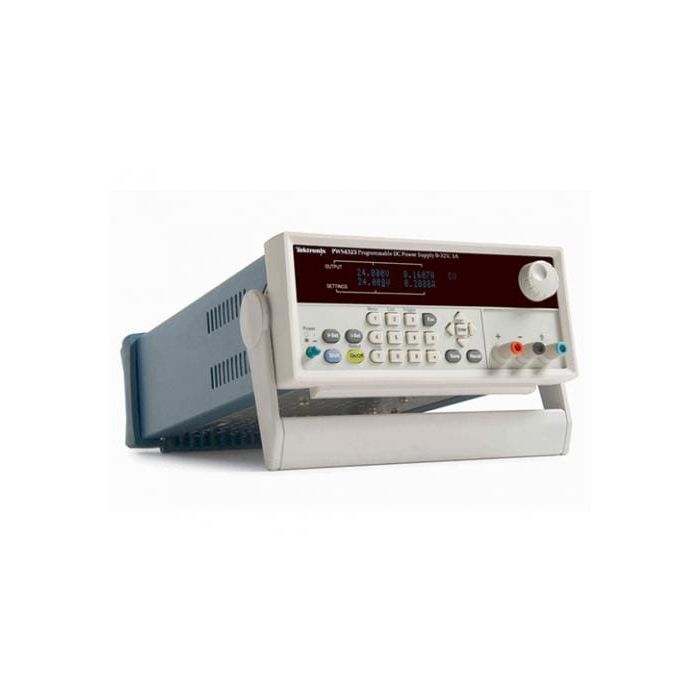

main product photo

With wide voltage and current ranges, the PWS4000 Programmable Power Supply Series makes a versatile addition to your bench. A basic voltage accuracy of 0.03% and less than 5 mVp-p noise means you can be confident in the power supply's output value. List mode and a USB port for remote programming accelerate complex test development. The PWS4000 Power Supply Series generates the power you need for your application – quickly and precisely.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more
info@apctech.com
+44 330 313 3220
More Information
Attribute Value
Key Features

Key Performance Specifications

  • Linear Regulation
  • Up to 72 V Output Voltage
  • 0.03% Basic Voltage Accuracy
  • 0.05% Basic Current Accuracy
  • Less than 5 mVp-p Ripple and Noise

Available Functions and Features

  • Output Voltage, Current, and Limits Displayed Simultaneously on a Bright Display
  • Up to 40 User-defined Setup Memories
  • Direct Parameter Entry using Numeric Keypad
  • Adjustable Overvoltage Protection
  • List Mode for Stepping through Stored Test Sequences
  • Remote Sense to Compensate for Lead Resistance

Connectivity

  • Rear Outputs and Trigger/Status Lines
  • USB Device Port on Rear Panel for Quick PC Connectivity and Remote Programming
  • Includes National Instrument’s LabVIEW SignalExpress™ Tektronix Edition Software for Connecting Your Bench
Manufacturer Product Family Tektronix PWS4000 DC Power Supply
Maximum Voltage 60V
Maximum Current 2.5A
Power 150 W
Outputs Single Output
