2230G-30-1
2230G-30-1
Keithley Instruments

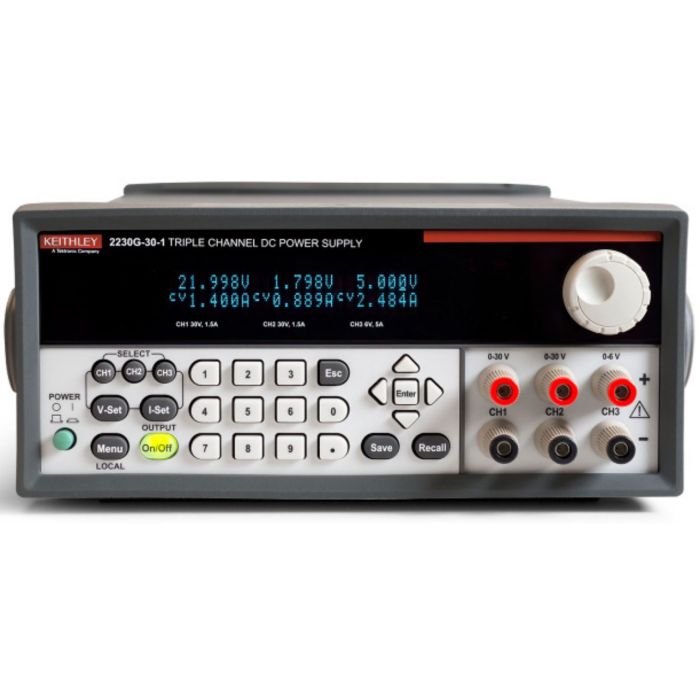

Programmable Triple Channel DC Power Supply with GPIB Interface
The Models 2220, 2220G, 2230, and 2230G Multi-Channel Programmable DC Power Supplies combine two and three channels of output power to cost-effectively characterise and test a wide range of devices, circuit boards, modules, and products that require more than one power source. The Model 2230G-30-1 includes two 30V/1.5A channels and add a 6V channel with up to 5A output for powering digital circuits.
These multi-channel power supplies offer an excellent combination of performance, versatility, and ease of use to maximise the information from characterisation or test as quickly and as easily as possible. They perform as effectively in automated test systems as they do in manual instrument configurations. The USB interface is standard on all models; the “G” versions add a GPIB interface.
Contact our team for stock availability and product options.
Discover Tektronix's factory service plans
Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.
| Attribute | Value |
|---|---|
| Key Features |
|
| Manufacturer Product Family | Keithley 2220/2230/2231 Series |
| Maximum Voltage | 30V |
| Maximum Current | 5A |
| Power | 120 W |
| Outputs | Triple Output |
| Applications |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
