Keithley 2281S-20-6 DC Power Supply | APC Technology Group

2281S-20-6

2281S-20-6

Keithley Instruments

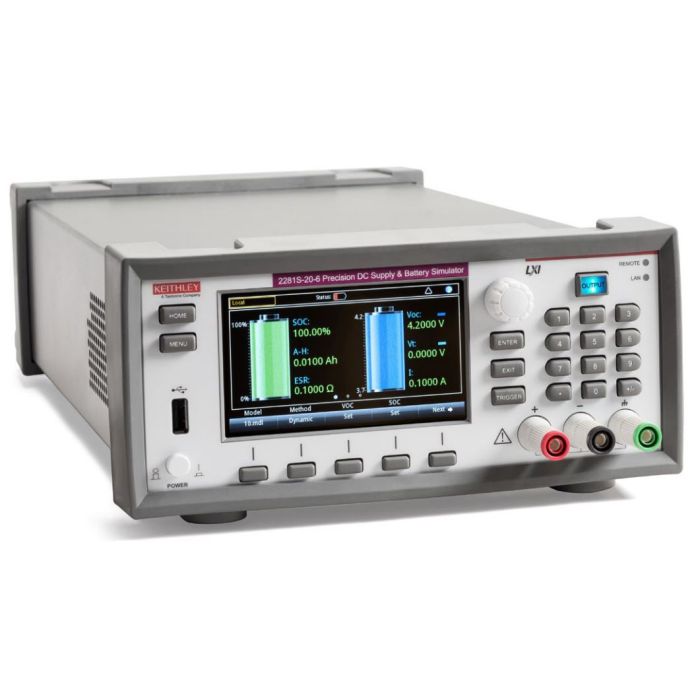

Precision DC Supply and Battery Simulator, 20 V, 6 A

The Series 2281S Battery Simulator and Precision DC Power Supply innovatively integrates battery simulation with the functions of a high-precision power supply. The 2281S-20-6 can analyse the DC current consumption of a device under test and generate a battery model based on a battery charging process, and simulate a battery based on a battery model. The 2281S-20-6 can output 120 W with 20 V and 6 A, and sink current up to 1 A.

The 2281S uses linear regulation to ensure low-output noise and superior load current measurement sensitivity. A high resolution color thin film transistor (TFT) screen displays a wide range of information on measurements. Soft-key buttons and a navigation wheel combine with the TFT display to provide an easy-to-navigate user interface that accelerates instrument setup and operation. In addition, built-in plotting functions allow monitoring trends such as drift.

These features provide the flexibility required for both benchtop and automated test system applications. In addition, the 2281S provides a list mode, triggers, and other speed optimisation functions to minimise test time in automated testing applications

Contact us for lead time

Contact our team for stock availability and product options.

Price £3,190.00

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Key Features
  • Simulate a battery’s output during the charge and discharge cycles
  • Create, edit, import, and export battery models
  • Build a library of battery models using a Source Measure instrument as a model generator
  • Display the real-time change of the SOC, Voc, and Vt for the simulated battery
  • Compute battery capacity in Amp-Hour and Equivalent Series Resistance (ESR)
  • Program the battery SOC, Voc, capacity, and internal resistance (ESR)
  • Provide two modes of simulation–dynamic and static
  • Monitor charge/discharge current and voltage
  • Output up to 120 W of low noise, linear regulated power
  • Monitor load currents from 100 nA to 6 A with high accuracy in power supply mode
  • Measure voltage and current with 6½-digit resolution
  • Sink current up to 1 A and source current up to 6 A
  • Built-in graphing simplifies analysing trends or displaying voltage or current waveforms
  • High resolution TFT display and soft-key/icon-based user interface simplify operation
  • Digital I/O for direct communication with other devices and instruments
  • GPIB, USB, and LAN interfaces
  • Emulation of front panel display and controls via your web browser simplifies automated control and monitoring
Manufacturer Product Family Keithley 2281S Series
Maximum Voltage 20V
Maximum Current 6A
Measurement Resolution 0.1 mV
Power 120 W
Outputs Single Output
More Information
Attribute Value
