Name: 2260B-30-72
Brand: Keithley
SKU: 2260B-30-72
Price: 2210.00 GBP
Availability: OutOfStock

2260B-30-72

Keithley Instruments

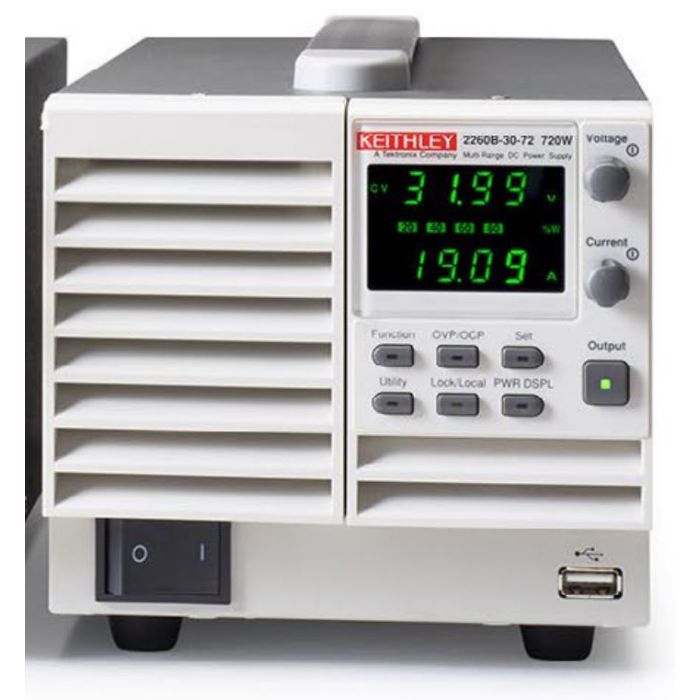

Programmable DC 720W Power Supply, 30V, 72A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Source a wide range of voltages and currents with the 360W, 720W, or 1080W Series 2260B Programmable DC Power Supplies. Choose from 12 versions with voltage output of 30V, 80V, 250V or 800V. The 720W models can output 72A, 27A, 9A, or 2.88A. This wide range of output voltages and current, combined with multiple interface choices, makes the Series 2260B ideal for use in a wide range of applications, including research and design, quality control, and production test.

Contact our team for stock availability and product options.

Price £2,210.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Key Features	720W version with voltages up to 800V and currents up to 72A Programmable voltage or current rise and fall times prevents damage to low impedance loads from inrush current Constant current priority setting reduces voltage and current overshoot when powering LEDs Programmable internal resistance simulates battery output Choose from analog control, USB, LAN, or optional GPIB interface for automated control Fit three 142mm wide 720W units in a standard rack width to minimise bench and test system space
Manufacturer Product Family	Keithley 2260B Series
Maximum Voltage	30V
Maximum Current	72A
Power	720 W
Outputs	Single Output
Applications	> Environmental test, stress test, and accelerated life testing LED and high power component testing Automotive testing Battery research and test Production test
