Keithley Instruments

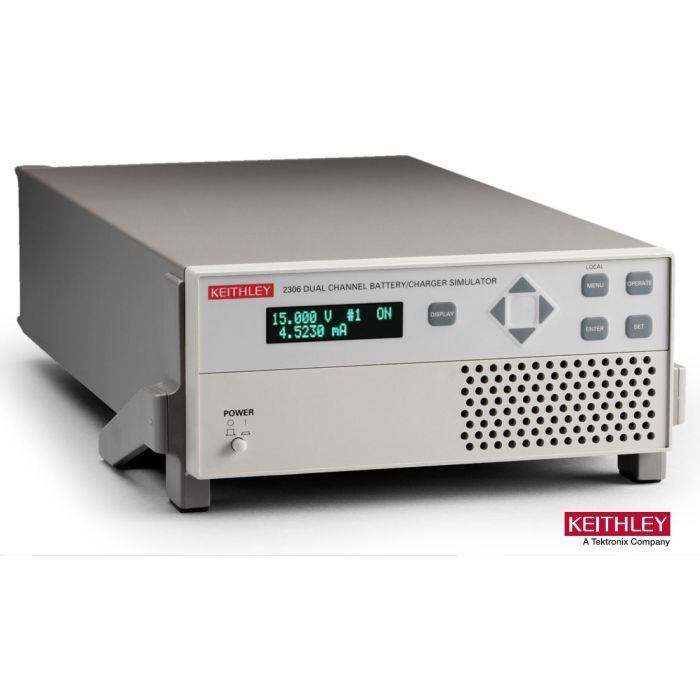

Dual-Channel Battery/Charger Simulator

The dual-channel 2306 Battery/Charger Simulator was designed specifically for development and test applications of portable, battery-operated products, such as cellular phones, wireless devices and wearables. This precision power supply has ultrafast transient response so it can have output characteristics identical to actual batteries. This supply employs a unique variable output resistance so the voltage output can emulate a battery’s response (U.S. Patent No. 6,204,647).

This power supply provides stable voltage outputs, even when a device-under-test (DUT) makes the rapid transition from the standby (low current) state to the RF transmission (high current) state. In addition, it can monitor DUT power consumption by measuring both DC currents and pulse load currents. The 2306’s battery-simulator channel can be programmed to operate like a discharged rechargeable battery, sinking current from the 2306’s charger-simulator channel.

Contact us for lead time

Contact our team for stock availability and product options.

Price £5,040.00

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Key Features
  • Ultrafast response to transient load currents
  • Choice of single- or dual-channel supplies
  • optimised for development and testing of battery powered devices
  • Variable output resistance for simulating battery response at a fixed point (U.S. Patent No. 6,204,647)
  • Pulse peak, average, and baseline current measurements
  • 100 nA DC current sensitivity
  • Current step measure function
  • Sink up to 3 A
  • Open sense lead detection
  • Built-in digital voltmeter
  • LAN communication (2306-LAN only)
Manufacturer Product Family Keithley 2300 Series
Maximum Voltage 15V
Maximum Current 5A
Outputs Dual Output
More Information
Attribute Value
Data Sheet Click here to view
