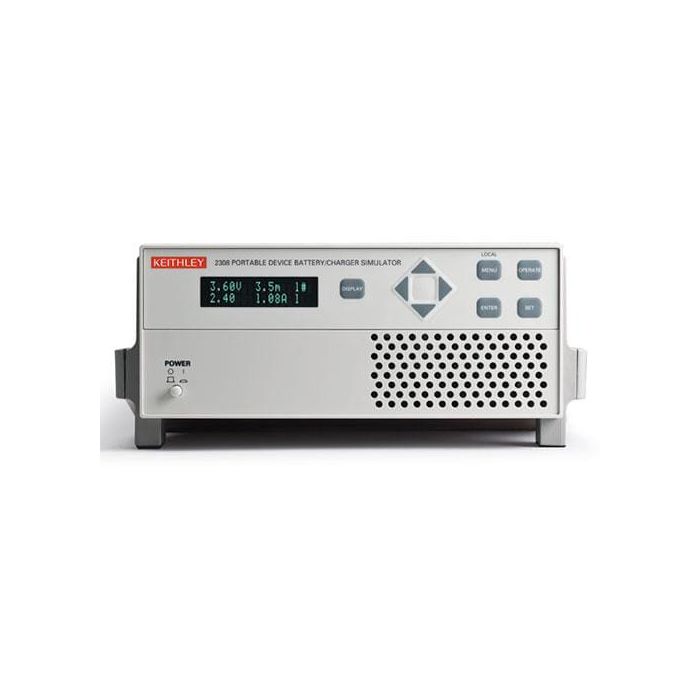

Keithley Instruments

Portable Device Battery/Charger Simulator

The Model 2308 Portable Device Battery/Charger Simulator is optimised for use in testing mobile phones and other portable, battery-operated devices. When a device-under-test (DUT) transitions nearly instantaneously from a sleep or standby mode to the full power transmit state, the Model 2308’s rapid response to load changes means there’s little transient voltage drop from the programmed output voltage and the output recovers quickly.

This fast response is particularly critical when testing portable devices with a pulsed mode of operation because it allows the device to perform properly while it’s being tested. In contrast, the slow-responding source voltage typical of conventional power supplies causes the DUT to perform improperly, leading to production yield problems and costly retesting.

The Model 2308 offers a complete solution for portable device sourcing and load current measurement. It has two independent power supply channels: one is optimised to simulate a battery; the second channel is optimised to perform like a charger for a rechargeable battery.

The battery channel’s variable output resistance can be used to simulate the internal resistance of a battery so design and test engineers can simulate a battery’s output for testing devices under realistic operating conditions. This channel also sinks current to simulate a discharged battery. The charger channel can supply a voltage to test a portable device’s battery charge control circuitry, with the battery channel acting as the discharged battery load.

In addition to maintaining output voltage levels under difficult load conditions, the Model 2308 can measure a wide dynamic range of load current levels and can measure narrow current pulses (or pulses as narrow as 50µs). That makes it ideal for characterizing device power consumption by making low-level sleep mode measurements as well as pulsed operating load currents.

Contact us for lead time

Contact our team for stock availability and product options.

Price £4,520.00

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Key Features
  • specialised dual-channel power supply for design and testing of portable, battery-operated devices
  • Ultra-fast response to pulsed load operation
  • Speed-optimised command set reduces test times
  • Variable output resistance for simulating an actual battery’s output response
  • Simulate a discharged battery and test charge control circuit performance with both a battery supply that can sink up to 3A and a charger supply
  • Pulse peak, average, and baseline current measurements
  • Integrating A/D converter for more precise measurements
  • 100nA current measurement sensitivity
  • Analog output for complete load current waveform characterisation
  • Catch production wiring problems immediately with open sense-lead detection
  • Built-in digital voltmeter
  • Four built-in digital control lines
Manufacturer Product Family Keithley 2300 Series
Maximum Voltage 15V
Maximum Current 5A
Outputs Dual Output
Applications
  • Mobile phones, mobile radios, cordless phones, and Bluetooth headsets
  • MP3 players, portable digital assistants (PDAs), digital cameras, GPS receivers, and notebook computers
  • RFIC power amplifiers, RF power transistors, and baseband and wireless chipsets
More Information
Attribute Value
Data Sheet Click here to view
