HAEFELY AG

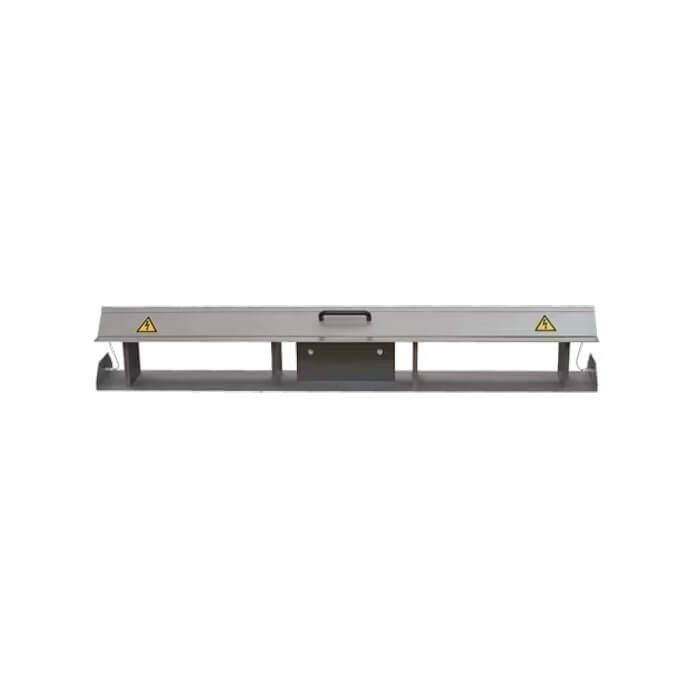

IP4B - EFT/Burst Capacitive Coupling Clamp According To IEC/EN 61000-4-4
The HaefeIy P4B capacitive coupling clamp is primarily used to inject fast transient/burst interference pulses into signal, data and power line cables.
The latest standard IEC/EN 61000-4-4 also allows the capacitive coupling method to be used for pulse injection into AC and DC power lines when no appropriate decoupling network is available. The coupling capacitance (typically 100 pF) between the coupling clamp and the cable inserted depends on the cable type, the diameter and other factors like screening, etc.
Key Features
- Designed as per the latest IEC/EN 61000-4-4
- EFT/Burst testing of signal, data and power line cables
- For cable diameters from 0.1 - 40 mm
- Active coupling length 1 m
For more information on this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories |
Coupling clamp IP4B, Connecting cable Fischer/SHV, Calibration certificate |
| Standards | IEC/EN 61000-4-4 Ed.3 |
| Applications | Capacitive coupling according to the latest IEC/EN 61000-4-4 standards |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
