3142E
3142E
ETS-Lindgren

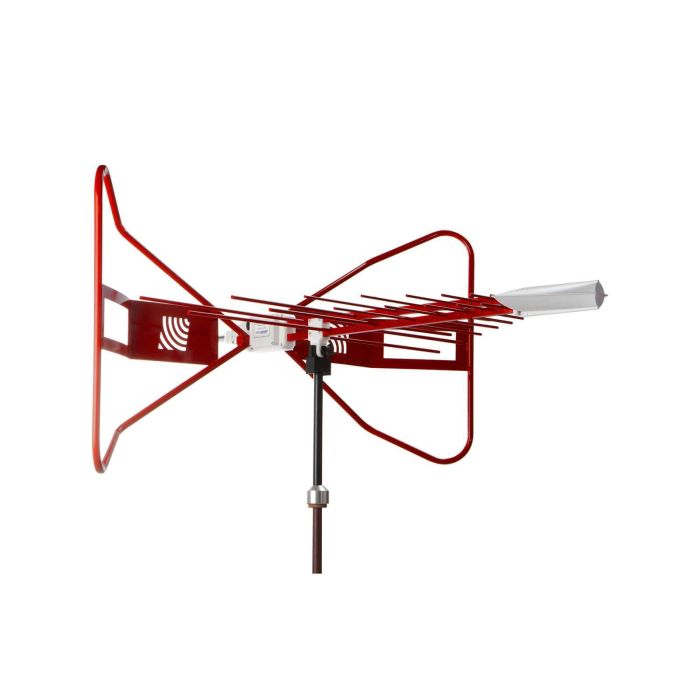

BiConiLog™ Antenna
The Model 3142E BiConiLog is a hybrid antenna that combines innovative design, compact size, and excellent performance.
This antenna enables users to measure a frequency range of 30 MHz to 6 GHz in one sweep, negating the need for multiple antennas and time-consuming equipment setup. Accuracy and repeatability are improved, while time and money are saved.
Key Features
- 30 MHz to 6 GHz frequency range in one sweep
- Dual-purpose for both immunity and emission testing
- Average 2:1 VSWR above 50 MHz
- Compact, lightweight design
- Eliminates need for multiple antennas
- Individually calibrated
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 139.2 x 133.9 x 76.2 cm (D x W x H) |
| Weight | 5.7 kg (12.6 lb) |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 30 MHz |
| Frequency Range | 30 MHz – 6 GHz |
| Gain | ~2 to 7 dBi |
| VSWR | 2.0:1 avg above 50 MHz |
| Max Input Power | 100 W |
| Impedance | 50 Ω |
| Antenna Type | Biconic Log Periodic Antenna |
| Polarisation | Linear |
| Pattern Type | Directional |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
