ASY-LPDA-S-006

Single Linear-Polarised High Crosspolar Log Periodic Dipole Array antenna - 0.65 GHz – 2.00 GHz

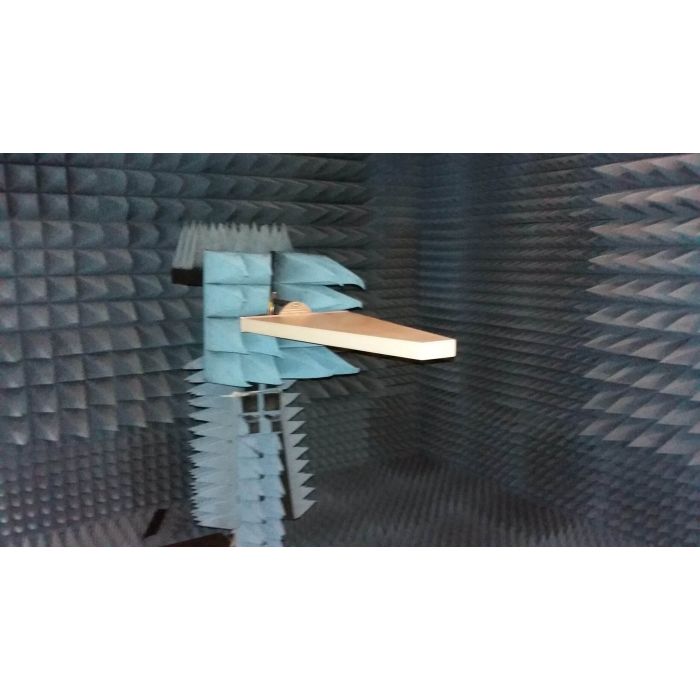

ASYSOL Single Linear-Polarized High Crosspolar Log Periodic Dipole Array antennas are wideband operation antennas consisting of sequences of linear dipoles connected forming coplanar arrays, allowing efficient automatic testing without standard bands breaks stopping, into lightweight structures.

ASYSOL antennas offer very low VSWR with high gain and very low cross-polarization in frequency range. LPDA antennas are covered by radome structures, in order to protect them and form more stable mechanical structures. Custom frequency bands are available upon request. Each antenna includes high precision customized mounting interfaces with levels and absorber plates. A detailed calibration report would be available upon request, critical for anechoic chamber applications.

Applications:

• EMC test measurements antenna
• Compact antenna test range feeds
• Spherical near-field antenna test range feeds
• Far-field antenna test range sources

For datasheet specifications, please contact a member of our test team.
