BL-01 30 MHz – 6 GHz
BL-01
Narda Safety Test Solutions

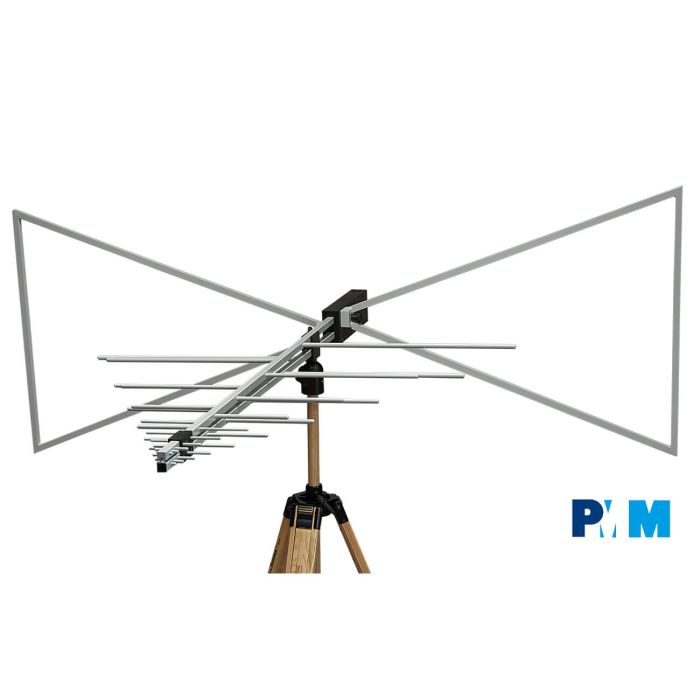

Biconical Log-Periodic Antenna
BL-01, a Bi-Conical Log-Periodic Antenna, suits radiated emissions and immunity testing with any receiver or spectrum Analyser.
It pairs seamlessly with the EMI Receiver Unit 9060, mountable on its mast for convenience.

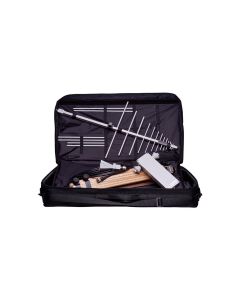

The BL-01 is also available in practical Antenna system:
- AS-07, 30 MHz - 6 GHz
- AS-08, 30 MHz - 18 GHz
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 30 MHz to 6 GHz |
| Gain | -9 to +5 dBi typical |
| Antenna Factor | 8 to 45 dB/m typical |
| VSWR |
30 MHz - < 16:1 typical 60 to 120 MHz - < 4:1 typical 120 to 170 MHz - < 2:1 typical 170 MHz to 6 GHz - < 1.5:1 typical |
| Max Input Power | 100 W @ 1 GHz 50 W @ 6 GHz |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions | 145 x 61 x 157 cm |
| Weight | 5.5 kg |
| Connector | N female |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
