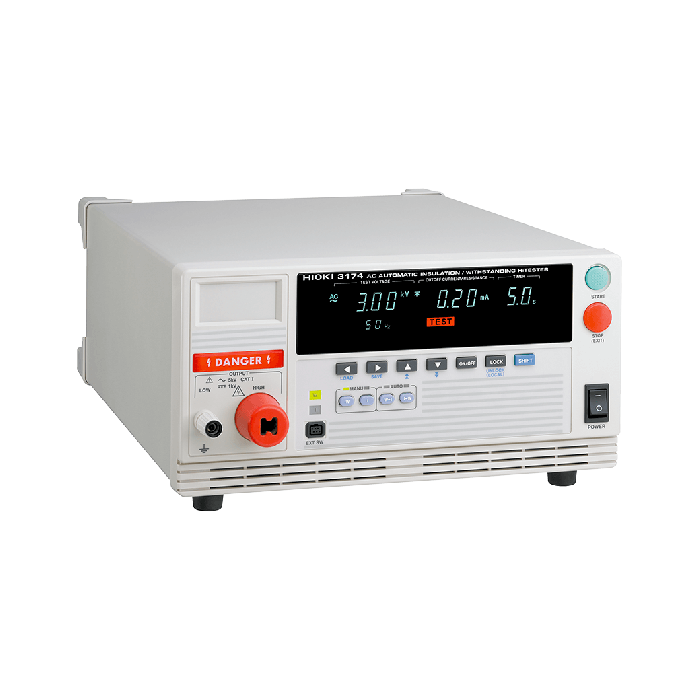

AC Automatic Insulation/Withstanding HiTester
This product is available in 5-7 weeks
Ensure Insulation and Withstand Voltage with Contact Check
The AC Automatic Insulation/Withstanding Tester 3174 is a low-cost solution featuring contact check functionality as well as a stabilised power supply to prevent the reduced test reliability that can result from these issues.
Key Features
- Continuous testing of insulation (500/1000 V) and withstand voltage (100 VA transformer capacity)
- Full remote operation when used in combination with the Safety Test Data Management Software 9267
- Save up to 8 test settings each for the withstanding and insulation testing modes
- Precise test voltage without power voltage dependency is generated using the PWM method
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Notes | To perform contact checks, please purchase another High Voltage Test Lead 9615 set separately. |
| Power Supply | 100 to 240 V AC, (50/60 Hz), 200 VA max. |
| Functions | Saving 8 testing conditions, hold, buzzer, contact check |
| Dimensions and Weight | 320 mm (12.60 in)W × 155 mm (6.10 in)H × 395 mm (15.55 in)D, 15 kg (529.1 oz) |
| Measurement Range |
Withstanding Test: 10 mA (0.01 mA resolution), 20 mA (0.1 mA resolution) Insulation Test: 0.5 MΩ to 999 MΩ (at 500 V), and 1 MΩ to 999 MΩ (at 1000 V): ±4 % rdg., |
| Accuracy | Insulation Test: 1000 MΩ to 2000 MΩ: ±8 % rdg. |
| Accessories | H.V. Test lead 9615 (high voltage side and return, 1 each) ×1, Power cord ×1, Instruction manual ×1, Disconnection prevention plate ×1 |
| Testing Voltage |
Withstanding Test: 0.2 V AC to 5.00 kV AC Insulation Test: 500 V DC, 1000 V DC |
| Voltage Setting | Withstanding Test: Digital setting, Setting resolution: 0.01 kV |
| Waveform Frequency | Withstanding Test: Sine wave (Distortion ratio 5 % or less at no load), 50/60 Hz selectable |
| Current Measurement | Withstanding Test: 0.01 mA to 20.0 mA, True RMS rectified (digital display) |
| Voltage Meter | Withstanding Test: Accuracy: ±1.5 % rdg. (1000 V or more), ±15 V (less than 1000 V), True RMS rectified |
| Judgement Function |
Withstanding Test: Window comparator method (Digital setting) Insulation Test: Window comparator method (Digital setting) |
| Unloaded Voltage | Insulation Test: 1 to 1.2 times rated voltage |
| Rated Testing Current | Insulation Test: 1 to 1.2 mA, Shorted current: 4 to 5 mA (at 500 V), 2 to 3 mA (at 1000 V) |
| Timer Section | Test times may differ from set timer times depending on the load. |
| Setting Range | 0.3 to 999 s |
| Ramp Delay | Testing voltage ramp-up, or down, Insulation test delay: 0.1 to 99.9 s |
| Monitor Function | Output voltage, detected current, insulation resistance, Refresh rate: 2 times/s |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
