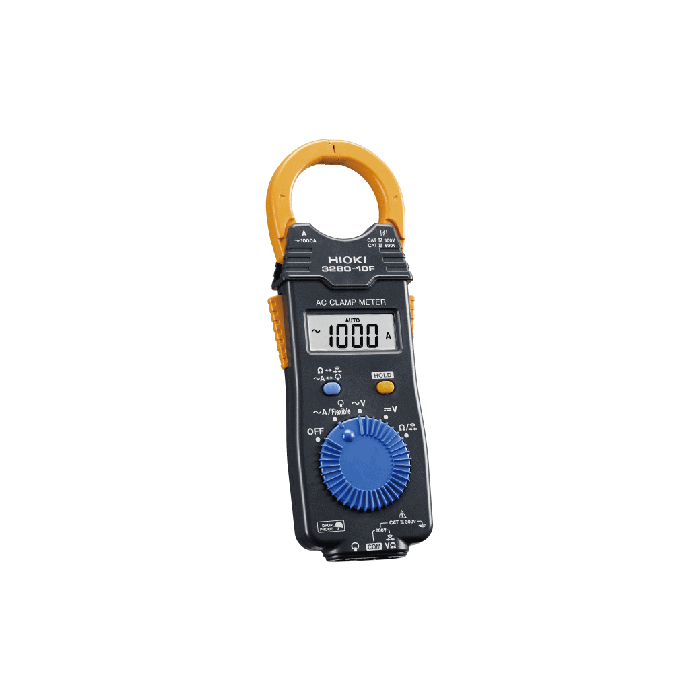

3280-10F

Hioki

AC Clamp Meter

Skip to the beginning of the images gallery

Rugged & Compact, Essential Equipment for Professional Electricians: Measure Current and Voltage with a Single Instrument

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)

Key Features

Measure the fundamental waveform component using the average rectified method
Expanded -25°C to 65°C operating temperature range
Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
Drop proof design withstands drop from a height of 1 meter

Specifications

More Information
Attribute	Value
Lead Time	Usually available in 5-7 weeks
Power Supply	Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
Included Accessories	Carrying case 9398 × 1, Test lead L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1
Display	LCD, max. 4199 dgt., Display refresh rate: 400 ms
Dimensions and Weight	57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Other Functions	Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Dustproof and Waterproof	IP40 dustproof and waterproof (while in storage)
Core Jaw Diameter	φ 33 mm (1.30 in)
DC Voltage range	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range	4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt.
AC Current Range	41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt.
