Hioki

Ac Clamp Meter CM3289 - Quickly clamp wires in even more confined spaces!

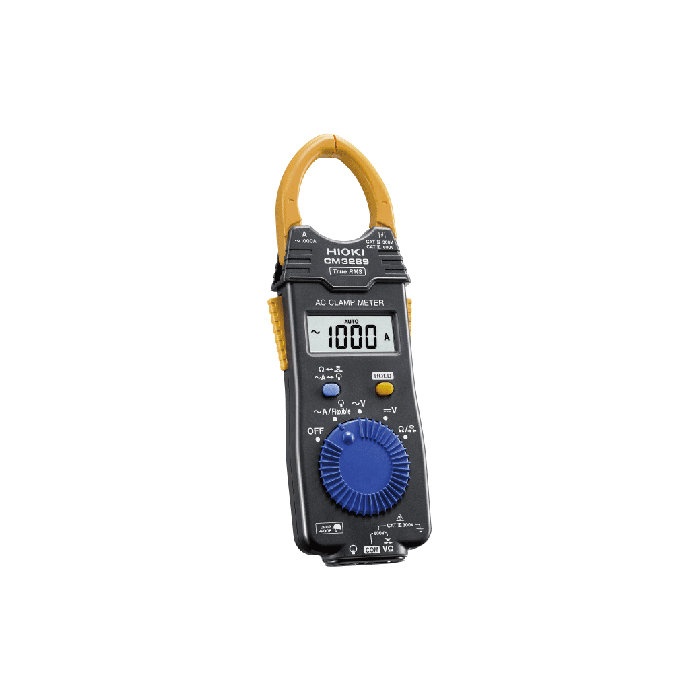

main product photo
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots. CAT IV 300 V (Current) CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • The CM3289 is the successor to the popular 3280-20F with a redesigned thinner sensor to help you get into the tightest spaces.
  • New redesigned sensor for even easier clamping
  • Expanded -25 °C to 65 °C operating temperature range
  • Measure even harmonic waveform components using the True RMS method
  • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
Basic Specifications
AC Current range 42.00 to 1000 A, 3 ranges
(40 Hz to 1 kHz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range 4.200 V to 600 V, 4 ranges
(45 to 500 Hz, True RMS),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor 2.5 or less at 2500 counts
(Linearly decreases to 1.5 or less at 4200 count)
Resistance range 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display LCD, max. 4199 dgt., Display refresh rate: 400 ms
Power supply Coin type lithium battery (CR2032) ×1
Continuous use 70 hours
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1
Instrument Type Clamp Meter
More Information
Attribute Value
Data Sheet Click here to view
