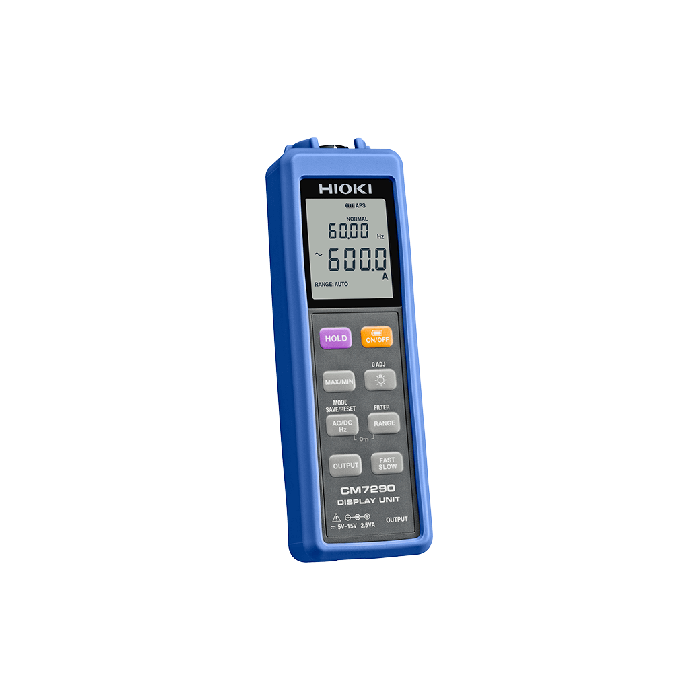

CM7290
CM7290
Hioki
Display Unit
This product is available in 5-7 weeks
Multi-functional Receiving/Display Unit to Use Right on the Field or Output to Advanced Recorder or Logger
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM7290 is the display and output unit for the CT7600 and CT7700 AC/DC Current Sensor series, creating a standalone clamp meter for field use or enabling waveform signals to be output to a Hioki memory recorder or logger for further analysis.
Key Features
- Power supply and signal output for Current Sensor CT7000 series
- Simultaneous dual display of the measured values, frequency, and output rate
- Four output formats to output data to loggers or other devices (via Display Unit)
- Supports AC adapter, AA alkaline batteries, and external power supply
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply |
LR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA |
| Included Accessories | LR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1 |
| Dimensions and Weight | 52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery) |
| Other Functions | Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock |
| Measurement Parameters | DC, AC, DC+AC, Hz |
| Dustproof and Waterproof | IP54 (with sensor connected and caps fitted to AC adapter and power connector) |
| Attribute | Value |
|---|---|
