CM4002-90
CM4002-90
Hioki

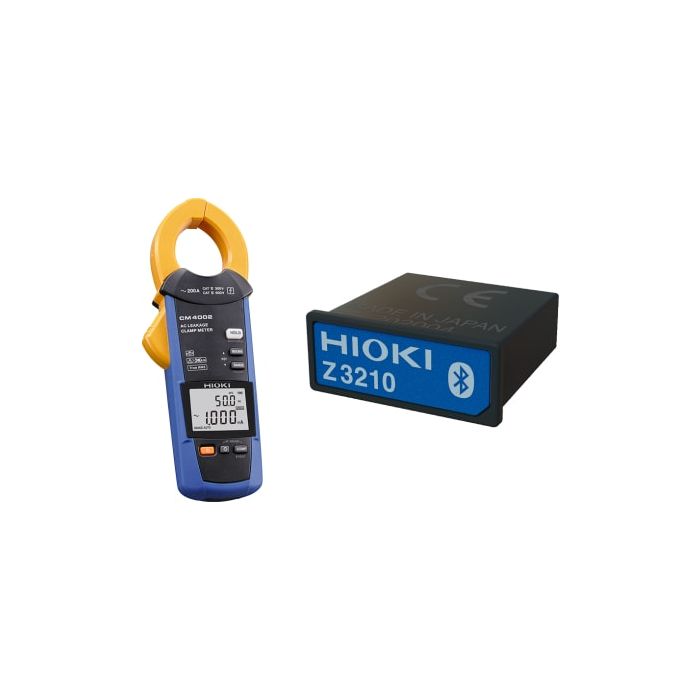

AC Leakage Clamp Meter, 6 mA to 200A
This product is available in 5-7 weeks
Prevent unexpected downtime!
Identify potential problems and avoid large problems
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Detect minuscule leakage currents with a newly designed sensor. (Core jaw diameter up to φ 40 mm)
- Broad measurement range extending from leakage currents to load currents
- Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
- Solve GFCI and RCD problems quickly
- Speed up pass/fail judgments with the built-in comparator function
- CAT IV 300 V
- CAT III 600 V
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications) |
| Included Accessories | Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2 |
| Display | Display refresh rate: 5 times/s |
| Dimensions and Weight | 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.) |
| Other Functions |
Filter Function: Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB) Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement |
| Core Jaw Diameter | φ 40 mm (1.57 in.) |
| AC Current Range |
6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS |
| Frequency Range | 15.0 Hz to 2000 Hz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
