Hioki

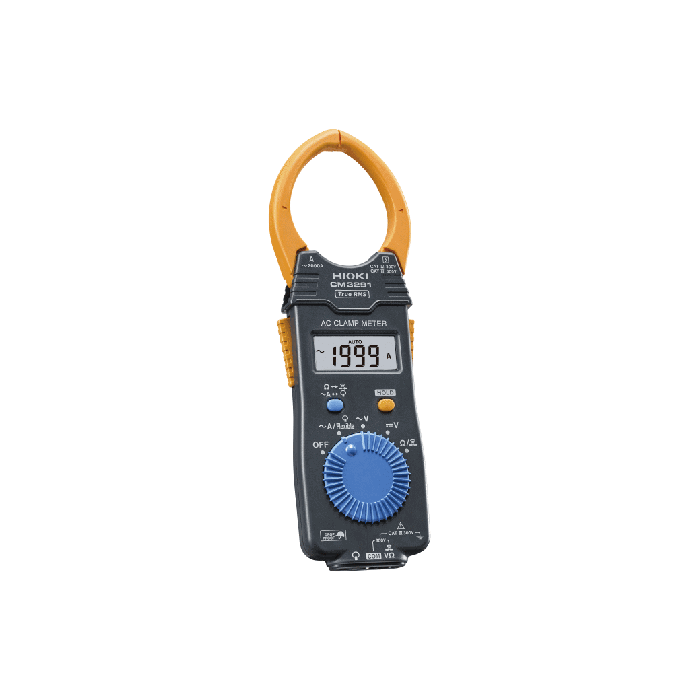

Ac Clamp Meter CM3291 - Large Jaw Lets You Clamp with Ease, ‌Measure thick cables right at the terminal

main product photo
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM3291 is a true RMS rectified 2000 A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots. CAT IV 300 V CAT III 600 V
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • AC only, measure up to 2000 A AC
  • -25°C to 65°C operating temperature range
  • Also measure resistance, continuity, AC and DC voltage
Basic Specifications
AC Current range 42.00 to 2000 A, 3 ranges (40 Hz to 1 kHz, True RMS),
Basic accuracy 45-66 Hz: ±1.5% rdg. ±5 dgt.
DC Voltage range 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range)
AC Voltage range 4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS),
Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range)
Crest factor For 2500 counts or less, 2.5 Reduces linearly to 1.5 or less at 4200 counts But, 1.5 or less for 2000 A ACA range
Resistance range 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range)
Other functions Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 70 hours
Core jaw diameter φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D
Dimensions and mass 57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz)
Accessories Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1
Instrument Type Clamp Meter
More Information
Attribute Value
Data Sheet Click here to view
