Hioki

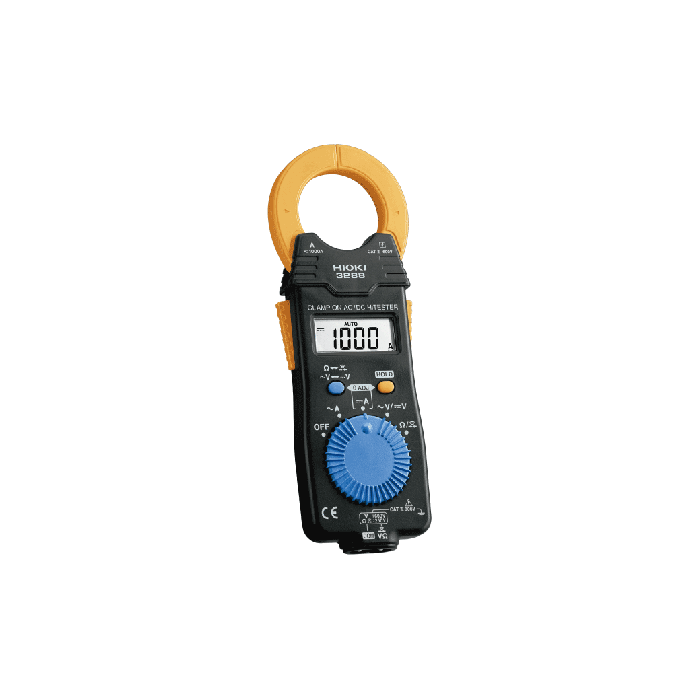

Clamp On Ac/Dc Hitester 3288 - Compact & Easy, One-Touch Maintenance on All Types of AC/DC Equipment
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.
CAT III 600 V (Current)
CAT III 300 V (Voltage)
CAT II 600 V (Voltage)
More Information
Attribute
Value
Key Features
Voltage, resistance, and continuity check functions Use the 3288 for high current measurements such as UPS emergency batteries and train motors
Basic Specifications
3288
3288-20
DC Current range
100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range
100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
DC Voltage range
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range
4.199 V to 600 V, 4 ranges,
4.199 V to 600 V, 4 ranges,
Resistance range
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Crest factor
N/A
3 or less (2 at 1000 A range, 1.5 at Voltage)
Other functions
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply
Coin type lithium battery (CR2032) ×1, Continuous use 60 hours
Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
Core jaw dia.
φ 35 mm (1.38 in)
Dimensions and mass
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
Accessories
Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1
Instrument Type
Clamp Meter
