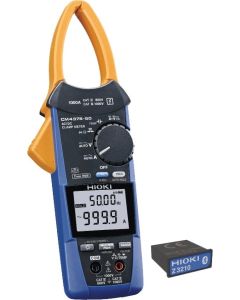

CM4371-90
CM4371-90
Hioki
AC/DC Clamp Meter
This product is available in 5-7 weeks
True RMS 600 A AC/DC Clamp Meter for the Toughest Situations
With DMM Functions that Deliver Top Safety
Key Features
- CAT IV 600 V, CAT III 1000 V
When using the P2010: CAT III 2000 V, CAT IV 1000 V - Measure DC voltages of up to 2000 V (*1) for open voltage inspections of solar panels
- Simultaneously measure inrush current in RMS and crest values
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file (*2)
*1:When using the optional DC High Voltage Probe P2010. The clamp meter itself is capable of measuring up to 1000 V DC.
*2:Wireless Adapter Z3210 is necessary.
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply |
LR03 Alkaline battery ×2 |
| Included Accessories | Test Lead L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1 |
| Dimensions and Weight | 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz) |
| Other Functions | DC power, Continuity check, Diode check, Automatic AC/DC detection, Pass/fail judgement function of DC A and DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment |
| Dustproof and Waterproof |
IP20 (Voltage measurement in a completely dry condition. When jaw closes) |
| Core Jaw Diameter | φ33 mm (1.30 in), Jaw dimension: 69 mm (2.72 in) W× 14 mm (0.55 in) D |
| DC Voltage range | 600.0 ｍV to 1000 V (When using P2010: 600.0 V to 2000 V) |
| AC Voltage range | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V) |
| DC + AC Voltage range | 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V) |
| DC Current Range | 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range) |
| AC Current Range | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A) |
| Frequency Range | 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
