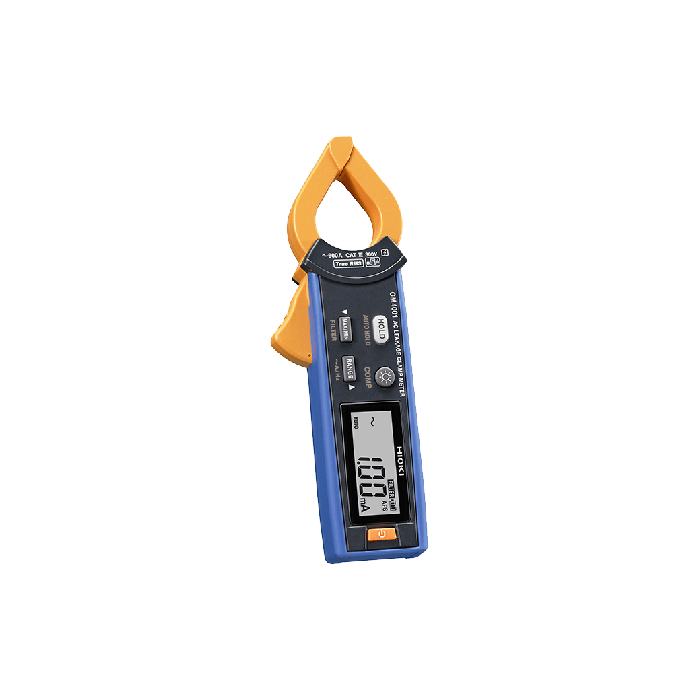

CM4001

CM4001

Hioki

AC Leakage Clamp Meter

Leakage Current Meter with Remarkable Ease of Use
Double Your Work Speed with Innovative Jaw Design

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables in order to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Slim jaws let you work with ease
  • Measure everything from leakage to load
  • Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current
  • Find issues faster with comparator function
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)
Included Accessories Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1
Display Display refresh rate: 5 times/s
Dimensions and Weight 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
Other Functions

Filter Function: Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)

Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function

Core Jaw Diameter φ 24 mm (0.94 in)
AC Current Range

60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A

Frequency Range 40.0 Hz to 999.9 Hz
