3280-70F
3280-70F
Hioki
AC Clamp Meter with Hioki CT6280 AC Flexible Current Sensor
This product is available in 5-7 weeks
Rugged & Compact, Essential Equipment for Professional Electricians: Measure Current and Voltage with a Single Instrument
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)

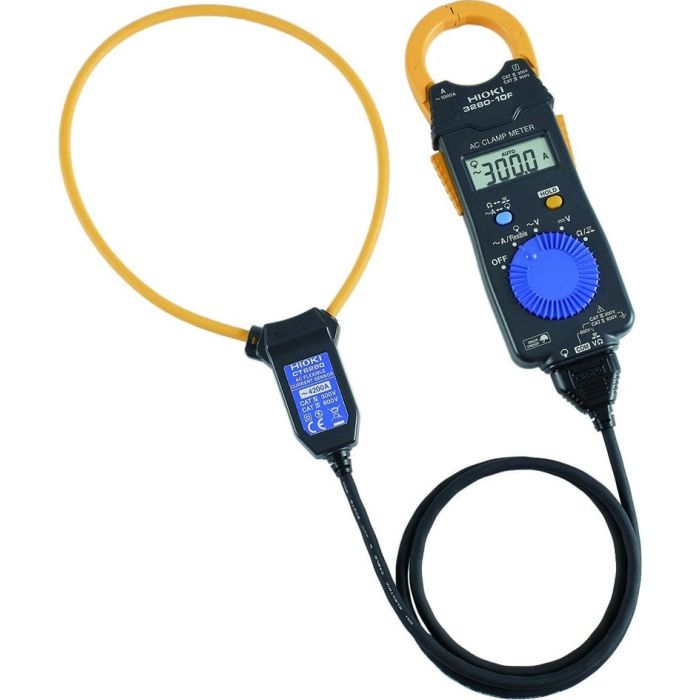

The 3280-70F includes both the meter and the Hioki CT6280 AC Flexible Current Sensor
Key Features
- Measure the fundamental waveform component using the average rectified method
- Expanded -25°C to 65°C operating temperature range
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop proof design withstands drop from a height of 1 meter
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
| Included Accessories | Carrying case 9398 × 1, Test lead L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1 |
| Display | LCD, max. 4199 dgt., Display refresh rate: 400 ms |
| Dimensions and Weight | 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
| Other Functions | Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Dustproof and Waterproof | IP40 dustproof and waterproof (while in storage) |
| Core Jaw Diameter | φ 33 mm (1.30 in) |
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range |
4.199 V to 600 V, 4 ranges |
| AC Current Range |
41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
