Clamp On Adapter 9290-10 - AC Current Transformer to Meet Applications Exceeding 1000A AC

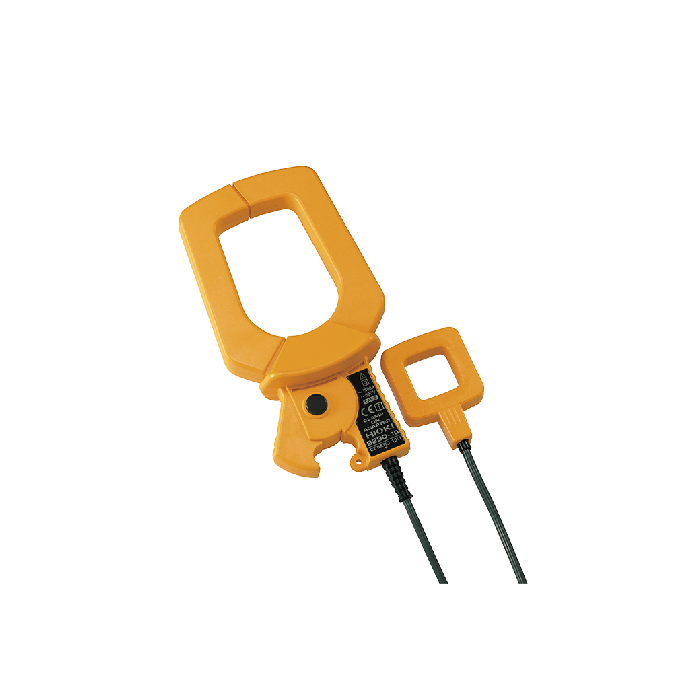

main product photo
Hioki clamp sensors are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 9290-10 is a clamp-on adapter rated for 1500A AC, and features a 10:1 CT ratio. In addition to the large clamp diameter, broad frequency characteristics and good phase characteristics, the CT reliably provides Hioki clamp on power meters with expanded range and large current measurements.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Output large currents of 1,000 A AC continuously (1,500 A for 5 minutes) at a CT ratio of 10:1
  • Expand the measurement range of normal clamp ammeters
  • Excellent phase characteristics that can be used to expand power meter measurement ranges
Basic Specifications
Rated primary current AC 1000 A continued (Maximum 1500 A for 5 minutes or shorter)
Rated secondary current AC 100 A (10 : 1 CT ratio)
Amplitude accuracy ±1.5% rdg.
Phase accuracy ±1.0° or less
Frequency characteristic Amplitude: 20 Hz to 5 kHz: ±2.0 % rdg. (deviation from accuracy)
Phase: 20 Hz to 5 kHz: ±1.0 ° or less (deviation from accuracy)
Max. rated voltage to earth 600 V AC rms (insulated wire)
Core jaw dia. φ 55 mm (2.17 in) or 80 mm (3.15 in) × 20 mm (0.79 in) busbar
Dimensions and mass 99.5 mm (3.92 in) W × 188 mm (7.40 in) H × 42 mm (1.65 in) D, 580 g (20.5 oz), cord length 3 m (9.84 ft)
Accessories Instruction manual ×1, Mark band ×6
Instrument Type Clamp Meter
More Information
Attribute Value
Data Sheet Click here to view
